Produktbeskrivning

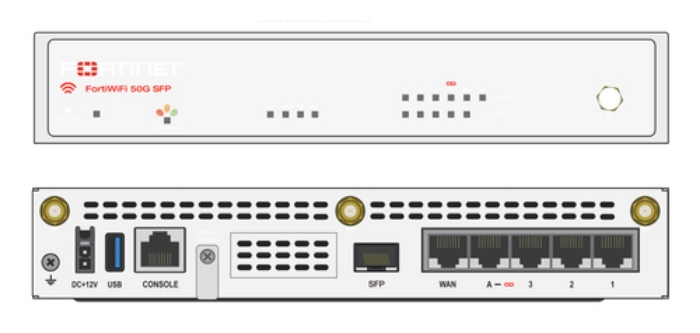

FortiGate FortiWiFi 50G Series

Converged Next-Generation Firewall (NGFW) and SD-WAN
The FortiGate Next-Generation Firewall 50G series is ideal for building security-driven networks at distributed enterprise sites and transforming WAN architecture at any scale.

With a rich set of AI/ML-based FortiGuard security services and our integrated Security Fabric platform, the FortiGate FortiWiFi 50G series delivers coordinated, automated, end-to-end threat protection across all use cases.

FortiGate has the industry’s first integrated SD-WAN and zero-trust network access (ZTNA) enforcement within an NGFW solution and is powered by one OS. FortiGate FortiWiFi 50G automatically controls, verifies, and facilitates user access to applications, delivering consistency with a seamless and optimized user experience.



Viktiga egenskaper

Fortinet FortiWiFі 50G-SFP. Firewall throughput: 5 Gbit/s, Firewall (UDP 1518) throughput: 5 Gbit/s, IPSec VPN throughput: 4.5 Gbit/s. Antenna design: External. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Connectivity technology: Wired & Wireless, Ethernet LAN data rates: 10,100,1000 Mbit/s, Console port: RJ-45. Form factor: Desktop



Teknisk specifikation

Firewall throughput	5 Gbit/s
Firewall (UDP 1518) throughput	5 Gbit/s
IPSec VPN throughput	4.5 Gbit/s
Threat protection throughput	1100 Mbit/s
SSL inspection throughput	1300 Mbit/s
Firewall latency	2.42 µs
Security policies (max)	2000

Antenna design	External
Antennas quantity	3
MIMO	Yes
Reset button	Yes
Concurrent connections	720000
Noise level	0 dB
Certification	USGv6/IPv6

Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)

LED indicators	Yes

Connectivity technology	Wired & Wireless
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Combo SFP ports quantity	1
Ethernet LAN (RJ-45) ports	3
Console port	RJ-45
Ethernet LAN data rates	10,100,1000 Mbit/s
DC-in jack	Yes
WAN connection	Ethernet (RJ-45)

Form factor	Desktop

AC input voltage	100-240 V
AC input frequency	50/60 Hz
DC input voltage	12 V
Power consumption (typical)	12.5 W
Power consumption (max)	13.9 W
Number of power supply units	1

Compliance certificates	CB,CE,Federal Communications Commission (FCC),ISED,UL,cUL

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-35 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 3048 m

Width	216 mm
Depth	160 mm
Height	40.5 mm
Weight	1000 g
