Produktbeskrivning

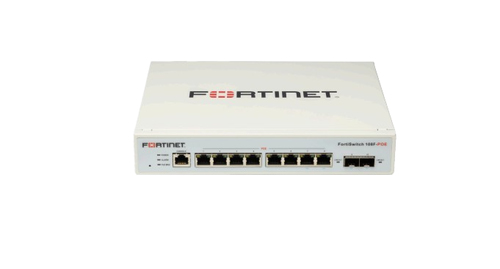

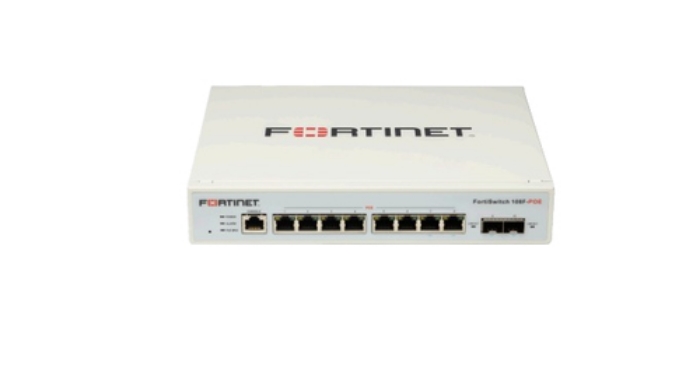

Layer 2 FortiGate switch controller compatible switch with 8 x GE RJ45 ports, 2 x GE SFP, Fanless, 12V/3A power adapter of input voltage 100 – 240VAC, and PSE dual powered.



Viktiga egenskaper

Fortinet FS-108F. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L2+
Web-based management	Yes
Configuring Location Settings (CLI)	Yes

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Console port	RJ-45

Networking standards	IEEE 802.3af,IEEE 802.3at
Link aggregation	Yes
Spanning tree protocol	Yes
Number of VLANs	4000

MAC address table	8000 entries
Switching capacity	20 Gbit/s
Latency (1 Gbps)	4 µs
Packet buffer memory	0.512 MB

Access Control List (ACL)	Yes
Security algorithms	HTTPS,SNMP,SNMPv2,SNMPv3,SSH

Rack mounting	Yes
Product colour	White
LED indicators	Yes
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	32 MB
Telnet	Yes
Fanless	Yes

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	74.4 W

Power over Ethernet (PoE)	No
Power over Ethernet (PoE) power per port	65 W

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Heat dissipation	34.12 BTU/h

Width	250 mm
Depth	209 mm
Height	44 mm
Weight	1700 g
