Produktbeskrivning
FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate ® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from
the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.
Viktiga egenskaper

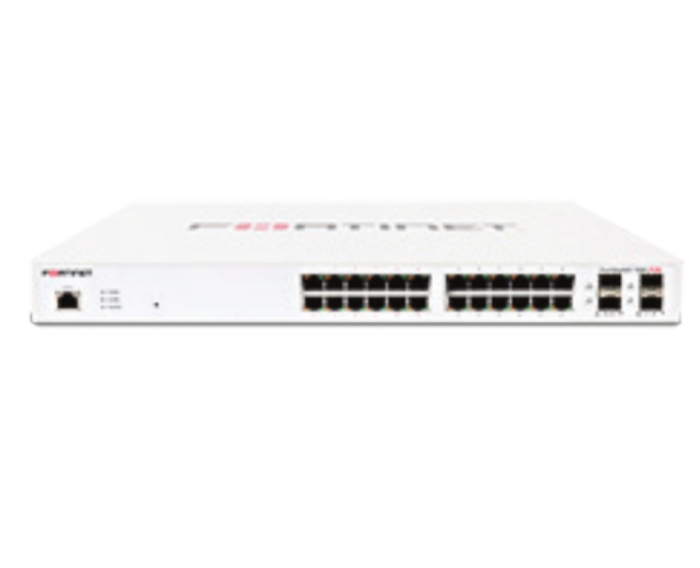

Fortinet L2+ managed POE switch with 24GE +4SFP, 12 port POE with max 185W limit and smart fan temperature control. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2 |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Gigabit Ethernet (copper) ports quantity | 24 |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| SFP module slots quantity | 4 |
|---|
| Console port | RJ-45 |
|---|
Network
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u |
|---|
| 10G support | No |
|---|
| Port mirroring | Yes |
|---|
| Full duplex | Yes |
|---|
| Auto-negotiation | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Link aggregation | Yes |
|---|
| Flow control support | Yes |
|---|
| VLAN support | Yes |
|---|
| Virtual LAN features | Tagged VLAN |
|---|
| Number of VLANs | 4096 |
|---|
Data transmission
| MAC address table | 8000 entries |
|---|
| Switching capacity | 56 Gbit/s |
|---|
| Forwarding rate | 83 Mpps |
|---|
| Store-and-forward | Yes |
|---|
| Latency (1 Gbps) | 4 µs |
|---|
| Jumbo frames support | Yes |
|---|
| Packet buffer memory | 0.512 MB |
|---|
Security
| DHCP features | DHCP client,DHCP relay,DHCP snooping |
|---|
Multicast features
| Multicast support | Yes |
|---|
Protocols
| Management protocols | HTTP / HTTPS, SNMP v1/v2c/v3, Telnet / SSH |
|---|
Design
| Rack mounting | Yes |
|---|
| Form factor | 1U |
|---|
| Product colour | White |
|---|
| LED indicators | Yes |
|---|
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
|---|
Performance
| Memory type | DDR3-SDRAM |
|---|
| Internal memory | 256 MB |
|---|
| Flash memory | 32 MB |
|---|
Power
| Power supply included | Yes |
|---|
| Redundant power supply (RPS) support | No |
|---|
| Number of power supply units | 1 |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Power consumption (typical) | 202.78 W |
|---|
| Power consumption (max) | 205.45 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet (PoE) ports quantity | 12 |
|---|
| Total Power over Ethernet (PoE) budget | 185 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Heat dissipation | 60.67 BTU/h |
|---|
Weight & dimensions
| Width | 440 mm |
|---|
| Depth | 309 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 5030 g |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
