Produktbeskrivning

FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices.
Tightly integrated into the FortiGate® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.



Viktiga egenskaper

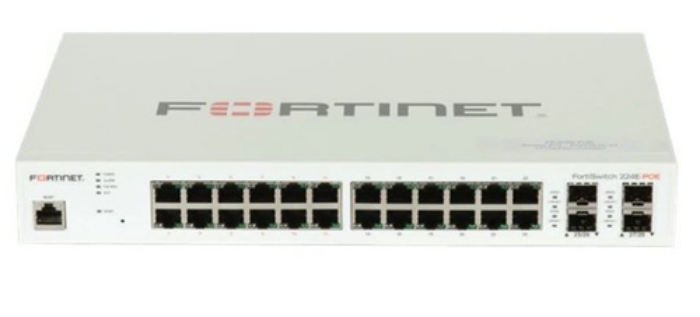

Fortinet Layer 2/3 FortiGate switch controller compatible PoE+ switch with 24 x GE RJ45 ports, 4 x GE SFP, with automatic Max 180W POE output limit. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L2/L3

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4

Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
10G support	No
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	4000

MAC address table	16000 entries
Switching capacity	56 Gbit/s
Forwarding rate	83 Mpps
Packet buffer memory	1.5 MB

Rack mounting	Yes
Form factor	1U
Product colour	White
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Internal memory	512 MB
Flash memory	128 MB

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	220.18 W
Power consumption (max)	223.57 W

Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	180 W

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Heat dissipation	74.29554 BTU/h

Width	230 mm
Depth	330 mm
Height	44 mm
Weight	2440 g

Harmonized System (HS) code	85176990
