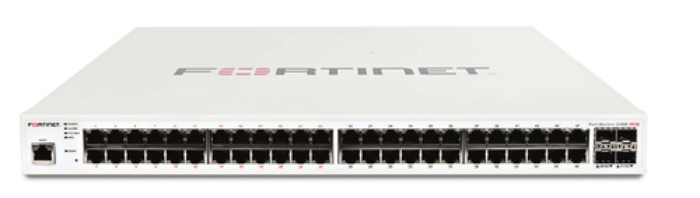

Produktbeskrivning
FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate ® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from
the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.
Viktiga egenskaper
Fortinet Layer 2/3 FortiGate switch controller compatible PoE+ switch with 48 x GE RJ45 ports, 4 x GE SFP, with automatic Max 370W POE output limit. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2 |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Gigabit Ethernet (copper) ports quantity | 48 |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| SFP module slots quantity | 4 |
|---|
| Console port | RJ-45 |
|---|
Network
| Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
|---|
| 10G support | No |
|---|
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
|---|
| Port mirroring | Yes |
|---|
| Full duplex | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Auto-negotiation | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Link aggregation | Yes |
|---|
| Flow control support | Yes |
|---|
| VLAN support | Yes |
|---|
| Virtual LAN features | Tagged VLAN |
|---|
| Number of VLANs | 4096 |
|---|
Data transmission
| MAC address table | 16000 entries |
|---|
| Switching capacity | 104 Gbit/s |
|---|
| Forwarding rate | 155 Mpps |
|---|
| Latency (1 Gbps) | 1 µs |
|---|
| Jumbo frames support | Yes |
|---|
| Packet buffer memory | 1.5 MB |
|---|
Security
| DHCP features | DHCP client,DHCP relay,DHCP snooping |
|---|
| IGMP snooping | Yes |
|---|
| BPDU filtering/protection | Yes |
|---|
| Authentication | Guest VLAN,MAC-based authentication,Port-based authentication |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Form factor | 1U |
|---|
| Product colour | White |
|---|
| LED indicators | Yes |
|---|
| Certification | C, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
|---|
Power
| Power supply included | Yes |
|---|
| Redundant power supply (RPS) support | No |
|---|
| Number of power supply units | 1 |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Power consumption (typical) | 457.46 W |
|---|
| Power consumption (max) | 466.47 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet (PoE) ports quantity | 24 |
|---|
| Total Power over Ethernet (PoE) budget | 370 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -20 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Heat dissipation | 177.14268 BTU/h |
|---|
Weight & dimensions
| Width | 440 mm |
|---|
| Depth | 410 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 5500 g |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
