Produktbeskrivning

FortiSwitch™ Secure Access Family
The FortiSwitchTM Secure Access Family delivers outstanding security, performance, and manageability. Secure, Simple, and Scalable, FortiSwitch is the right choice for threat-conscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.

Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.



Viktiga egenskaper

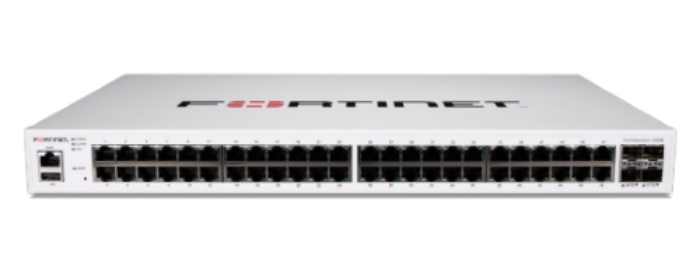

Fortinet Layer 2/3 FortiGate switch controller compatible switch with 48 x GE RJ45 ports, 4 x 10 GE SFP+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Rack mounting, Form factor: 1U



Teknisk specifikation

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Console port	RJ-45

10G support	Yes
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	4000

MAC address table	32000 entries
Switching capacity	176 Gbit/s
Forwarding rate	262 Mpps
Latency (1 Gbps)	1 µs
Packet buffer memory	2 MB

Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	White
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS

Memory type	DDR4-SDRAM
Internal memory	1024 MB
Flash memory	256 MB

Power supply included	Yes
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	46.5 W
Power consumption (max)	47.81 W

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Heat dissipation	163.032 BTU/h

Width	440 mm
Depth	310 mm
Height	44 mm
Weight	4160 g

Harmonized System (HS) code	85176990
