Produktbeskrivning

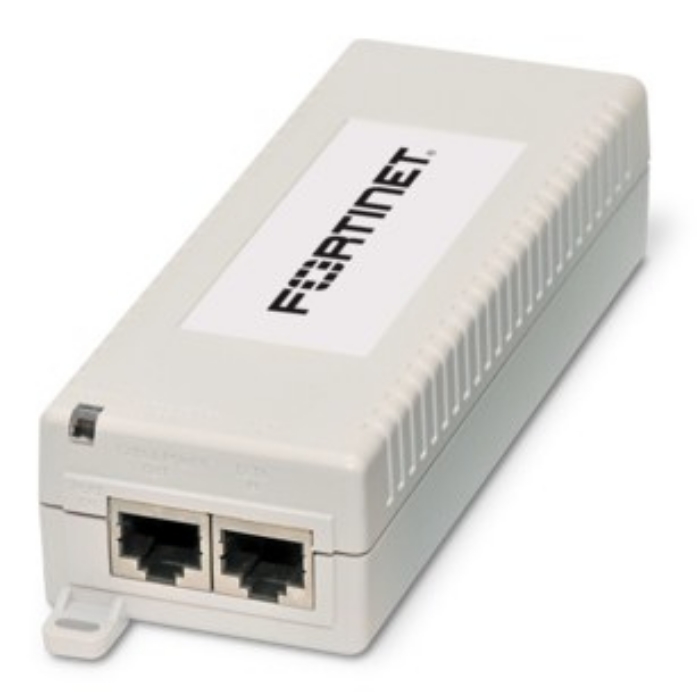

Power over Ethernet (PoE) Injector - GPI-115
The GPI-115 single port Power over Ethernet (PoE) Injector offers a IEEE 802.3af-compliant solution for the FortiAP Wireless Access Point family, and other 802.3af based devices. This mid-span power injector supplies up to 15.4 Watts of Gigabit Ethernet PoE and works with legacy network devices. The GPI-115 PoE Injector uses an intelligent auto-sensing algorithm to supply power to devices that accept 802.3af PoE connections.



Viktiga egenskaper

Fortinet 1-Port Gigabit PoE Power Injector, 802.3af 15.4Watts 10/100/1000 (PD-3501). for GPI-115 Gigabit PoE Injector. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T/X. Power over Ethernet (PoE) voltage: 50 V, AC adapter input voltage: 100 - 240 V, Input voltage: 90 - 264 V. Compliance industry standards: IEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Certification: RoHS, WEEE, CE, UL/CUL, GS Mark, EN, FCC. Weight: 200 g, Dimensions (WxDxH): 53 x 140 x 32.5 mm. Number of products included: 1 pc(s)



Teknisk specifikation

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T/X
Power over Ethernet (PoE)	Yes
Compliance industry standards	IEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

LED indicators	Yes
Certification	RoHS, WEEE, CE, UL/CUL, GS Mark, EN, FCC

Ethernet LAN (RJ-45) ports	2

Power over Ethernet (PoE) voltage	50 V
AC adapter input voltage	100 - 240 V
Input voltage	90 - 264 V
Input frequency	47/63 Hz
Input current	0.5 A

Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	0 - 90 %
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 100 m

Weight	200 g
Dimensions (WxDxH)	53 x 140 x 32.5 mm

Number of products included	1 pc(s)
