Produktbeskrivning

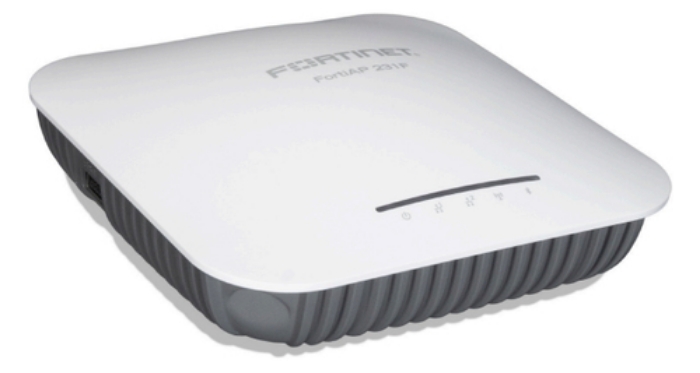

FortiAP 231F
This enterprise class Wi-Fi 6 indoor AP provides three radios as well as features such as OFDMA and dual 1 Gbps Ethernet ports. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 GHz and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.



Viktiga egenskaper

Fortinet FortiAP 231F. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1201 Mbit/s. Security algorithms: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: White



Teknisk specifikation

2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1201 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 GHz
Networking standards	IEEE 802.11j,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.3ad,IEEE 802.11a,IEEE 802.11ac,IEEE 802.11v,IEEE 802.3af,IEEE 802.11w,IEEE 802.11b,IEEE 802.11d,IEEE 802.11e,IEEE 802.3at,IEEE 802.11g,IEEE 802.11h,IEEE 802.1Q,IEEE 802.3az,IEEE 802.11i,IEEE 802
Channel bandwidth	40 MHz
Tunnel forwarding	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Modulation	64-QAM,256-QAM,1024-QAM,BPSK,QPSK

Security algorithms	EAP-AKA,EAP-FAST,EAP-GTC,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,PEAP,WPA,WPA2,WPA3
Number of SSID supported	16

Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
RS-232 interface	Yes

Power consumption (typical)	17 W

Placement	Ceiling,Wall
Product colour	White
Reset button	Yes
LED indicators	Yes
Certification	CE, FCC, IC

Antenna type	Internal
Antennas quantity	3
Antenna gain level (max)	5.5 dBi

Compliance certificates	RoHS

Width	153.2 mm
Depth	153.2 mm
Height	53 mm
Weight	543 g

Package weight	950 g

Operating relative humidity (H-H)	5 - 90 %
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C

Quantity per pack	1 pc(s)
