Produktbeskrivning

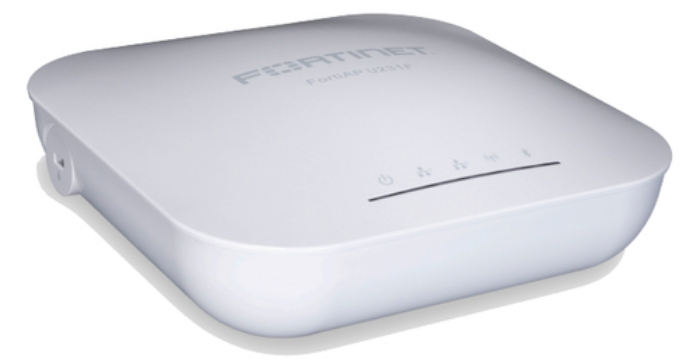

This enterprise class Wi-Fi 6 (802.11ax) indoor AP provides three radios as well as features such as OFDMA and dual 1 Gbps Ethernet ports for PoE diversity. The APs can be configured for dual 5 GHz band access while still providing coverage for devices on the 2.4 GHz band, or can be configured to offer dedicated scanning. The integrated BLE radio can be used for beacons and locationing applications.
Viktiga egenskaper
Fortinet FortiAP U231F. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1201 Mbit/s. Security algorithms: EAP-AKA, EAP-FAST, EAP-GTC, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WEP, WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 18.5 W
Teknisk specifikation
Features
| 2.4 GHz | Yes |
|---|
| 5 GHz | Yes |
|---|
| Maximum data transfer rate | 1201 Mbit/s |
|---|
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
|---|
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Frequency band | 2.4, 5 GHz |
|---|
| Networking standards | IEEE 802.11j,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.3ad,IEEE 802.11a,IEEE 802.11ac,IEEE 802.11v,IEEE 802.3af,IEEE 802.11w,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11e,IEEE 802.3at,IEEE 802.11g,IEEE 802.11h,IEEE 802.1Q,IEEE 802.3az,IEEE 802.11i,IEEE 80 |
|---|
| Channel bandwidth | 80 MHz |
|---|
| MIMO | Yes |
|---|
| MIMO type | Multi User MIMO |
|---|
| Modulation | 64-QAM,256-QAM,1024-QAM,BPSK,QPSK |
|---|
| Maximum Likelihood Detection (MLD) | Yes |
|---|
| Maximal-Ratio Combining (MRC) | Yes |
|---|
Security
| Security algorithms | EAP-AKA,EAP-FAST,EAP-GTC,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,WEP,WPA,WPA2,WPA3 |
|---|
| Blacklist | Yes |
|---|
| Whitelist | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| RS-232 interface | Yes |
|---|
Power
| Power over Ethernet (PoE) | Yes |
|---|
| Power consumption (max) | 18.5 W |
|---|
Design
| Placement | Ceiling,Wall |
|---|
| Product colour | White |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Reset button | Yes |
|---|
| LED indicators | Yes |
|---|
| Certification | FCC, IC, CE, Japan, Taiwan, Korea |
|---|
Antenna
| Antenna type | Internal |
|---|
| Antennas quantity | 5 |
|---|
| Antenna gain level (max) | 5.89 dBi |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 165 mm |
|---|
| Depth | 165 mm |
|---|
| Height | 52 mm |
|---|
| Weight | 680 g |
|---|
Packaging data
| Package weight | 1185 g |
|---|
Operational conditions
| Operating relative humidity (H-H) | 5 - 90 % |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -30 - 70 °C |
|---|
Logistics data
| Quantity per pack | 1 pc(s) |
|---|
