Produktbeskrivning

24xRJ-45/4x10GE SFP+, 185W PoE, 32K MAC, 128 Gbit/s, 190 Mpps, 100-240V, 50/60Hz, 237.4W



Viktiga egenskaper

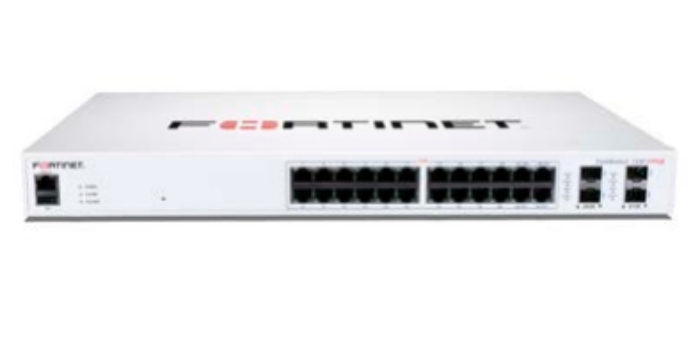

Fortinet L2+ managed POE switch with 24GE ports, 12 of which are POE+, 4 SFP+, max 185W limit and smart fan temperature control. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fiber ports quantity	4
Fiber optic connector	SFP+
Console port	RJ-45

Networking standards	IEEE 802.3af,IEEE 802.3at
10G support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	4000

MAC address table	32000 entries
Switching capacity	128 Gbit/s
Forwarding rate	190 Mpps
Latency (1 Gbps)	1 µs
Packet buffer memory	2 MB

Access Control List (ACL)	Yes

Rack mounting	Yes
Form factor	1U
Product colour	White
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Memory type	DDR3-SDRAM
Internal memory	512 MB
Flash memory	64 MB

Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	235.9 W
Power consumption (max)	237.4 W

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	12
Total Power over Ethernet (PoE) budget	185 W

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Heat dissipation	102.982 BTU/h

Width	440 mm
Depth	260 mm
Height	44 mm
Weight	3560 g
