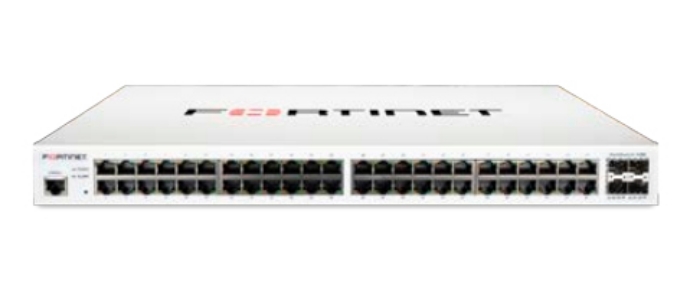

Produktbeskrivning

48xRJ-45/4xGE SFP, 16K MAC, 104 Gbit/s, 155 Mpps, 100-240V, 50/60Hz, 19.8W



Viktiga egenskaper

Fortinet L2+ managed switch with 48GE port + 4SFP. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Rack mounting, Form factor: 1U



Teknisk specifikation

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fiber ports quantity	4
Fiber optic connector	SFP

Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4000

MAC address table	16000 entries
Switching capacity	104 Gbit/s
Forwarding rate	155 Mpps
Latency (1 Gbps)	3860 µs
Packet buffer memory	1.5 MB

Access Control List (ACL)	Yes

Rack mounting	Yes
Form factor	1U
Product colour	White
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	64 MB
Mean time between failures (MTBF)	87600 h

Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	19.804 W
Power consumption (max)	22.137 W

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Heat dissipation	67.574 BTU/h

Width	440 mm
Depth	309 mm
Height	44 mm
Weight	3900 g
