Produktbeskrivning

Security, Performance, and Manageability
The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threatconscious businesses of all sizes. Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single-pane-of-glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch and campus deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.

Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next-Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage.



Viktiga egenskaper

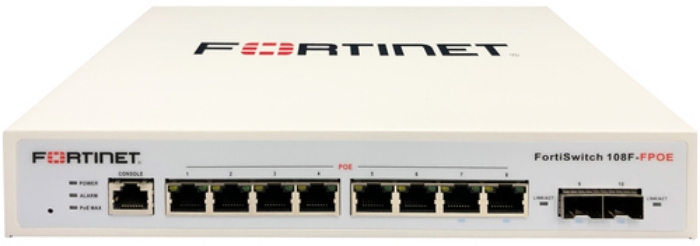

Fortinet FortiSwitch 108F-FPOE. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L2+
Web-based management	Yes
Configuring Location Settings (CLI)	Yes

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Console port	RJ-45

Networking standards	IEEE 802.3af,IEEE 802.3at
Spanning tree protocol	Yes
Link aggregation	Yes
Number of VLANs	4000

MAC address table	8000 entries
Switching capacity	20 Gbit/s
Latency (1 Gbps)	4 µs
Packet buffer memory	0.512 MB

Access Control List (ACL)	Yes
Security algorithms	HTTPS,SNMP,SNMPv2,SNMPv3,SSH

Rack mounting	Yes
Product colour	White
LED indicators	Yes
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	32 MB
Fanless	Yes

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	74.4 W

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	65 W

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Heat dissipation	34.12 BTU/h

Width	250 mm
Depth	209 mm
Height	44 mm
Weight	1700 g
