Produktbeskrivning

FortiSwitch Rugged switches deliver all of the performance and security of the trusted FortiSwitch Secure, Simple, Scalable Ethernet solution, but with added reinforcement that makes them ideal for deployments in harsh environments.

Resilient, sturdy and capable of withstanding intense temperature fluctuations, FortiSwitch Rugged ensures the integrity and performance of mission-critical networks in even the most challenging of deployments.

Add Ruggedized FortiGate for Tough and Powerful Protection
Engineered to survive in hostile environments with an extreme temperature range, the combination of FortiGate Rugged network security appliances with the FortiSwitch Rugged provides a connected network security solution.

Simple Network Deployment
The Power over Ethernet (PoE) capability enables simple installation of cameras, sensors and wireless access points in the network, with power and data delivered over the same network cable. There is no need to contract electricians to install power for your PoE devices, reducing your overall network TCO.



Viktiga egenskaper

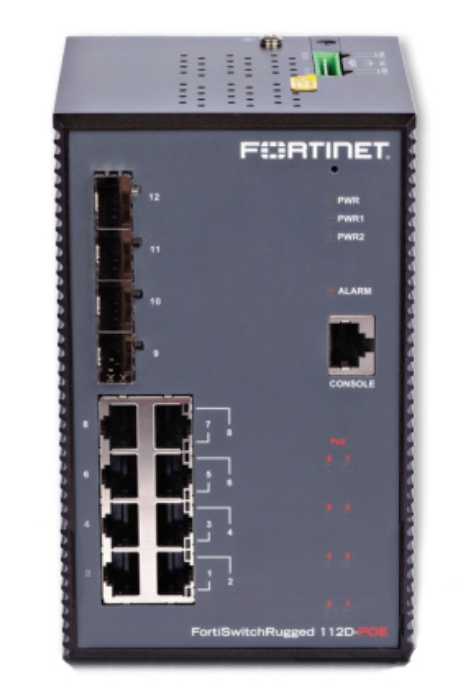

Fortinet Layer 2 ruggedized FortiGate switch controller compatible PoE+ switch with 8 x GE RJ45 ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: DB9. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Wall mountable



Teknisk specifikation

Switch type	Managed
Switch layer	L2
Web-based management	Yes
ARP inspection	Yes

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Console port	DB9

Networking standards	IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	No
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto-negotiation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN,Tagged VLAN
Number of VLANs	4000

MAC address table	8000 entries
Switching capacity	24 Gbit/s
Throughput	46 Mpps
Jumbo frames support	Yes

DHCP features	DHCP client,DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
SSH/SSL support	Yes

Multicast support	Yes

Product colour	Grey
LED indicators	Link,PoE,Power,Status
International Protection (IP) code	IP30
DIN rail mounting	Yes
Wall mountable	Yes
Certification	CE, FCC, UL/cUL, RoHS, BSMI, WEEE

Memory type	DRAM
Internal memory	512 MB
Flash memory	512 MB
Firmware upgradeable	Yes
Mean time between failures (MTBF)	262800 h

Power supply included	Yes
Redundant power supply (RPS) support	Yes
Power protection features	Reverse polarity

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W

Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %
Heat dissipation	69.6 BTU/h

Width	96.4 mm
Depth	105.5 mm
Height	154 mm
Weight	1230 g

Harmonized System (HS) code	85176990
