Produktbeskrivning

FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate ® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from
the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.

Security Fabric Integration

Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate. This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users.

In addition, same security policy can apply to a user or device regardless of how or where they connect to the network.

Simplify Network Deployment

The Power over Ethernet (PoE) capability in some models, enables simple installation of wireless Access Points and IP phones in the network.



Viktiga egenskaper

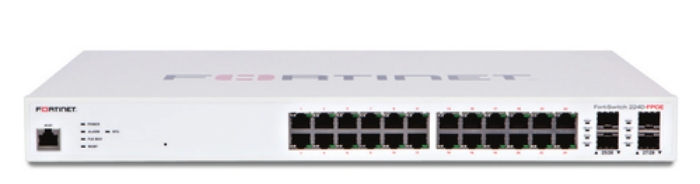

Fortinet Layer 2/3 FortiGate switch controller compatible PoE+ switch with 24 x GE RJ45 ports, 4 x GE SFP, with automatic Max 370W POE output limit. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L2/L3
Web-based management	Yes
Configuring Location Settings (CLI)	Yes

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Console port	RJ-45

Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	No
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	4096

MAC address table	16000 entries
Switching capacity	56 Gbit/s
Forwarding rate	83 Mpps
Latency (1 Gbps)	1 µs
Packet buffer memory	1.5 MB

Rack mounting	Yes
Form factor	1U
Product colour	White
LED indicators	Yes
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Internal memory	512 MB
Flash memory	128 MB

Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	380 W
Power consumption (max)	397 W

Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	370 W

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Heat dissipation	85 BTU/h

Width	440 mm
Depth	310 mm
Height	44 mm
Weight	4830 g
