Produktbeskrivning
FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate ® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from
the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.
Viktiga egenskaper

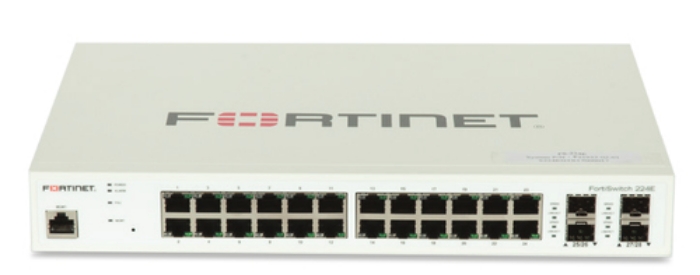

Fortinet Layer 2/3 FortiGate switch controller compatible switch with 24 x GE RJ45 ports, 4 x GE SFP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2 |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Gigabit Ethernet (copper) ports quantity | 24 |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| SFP module slots quantity | 4 |
|---|
| Console port | RJ-45 |
|---|
Network
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
|---|
| 10G support | No |
|---|
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
|---|
| Port mirroring | Yes |
|---|
| Full duplex | Yes |
|---|
| Flow control support | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Link aggregation | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| VLAN support | Yes |
|---|
| Virtual LAN features | Tagged VLAN |
|---|
| Number of VLANs | 4096 |
|---|
Data transmission
| MAC address table | 16000 entries |
|---|
| Switching capacity | 56 Gbit/s |
|---|
| Forwarding rate | 83 Mpps |
|---|
| Store-and-forward | Yes |
|---|
| Latency (1 Gbps) | 1 µs |
|---|
| Jumbo frames support | Yes |
|---|
| Packet buffer memory | 1.5 MB |
|---|
Security
| DHCP features | DHCP server,DHCP snooping,DHCPv6 snooping |
|---|
| IGMP snooping | Yes |
|---|
| BPDU filtering/protection | Yes |
|---|
| Authentication | Guest VLAN,MAC-based authentication,Port-based authentication |
|---|
Multicast features
| Multicast support | Yes |
|---|
Protocols
| Management protocols | HTTP / HTTPS, SNMP v1/v2c/v3, Telnet / SSH |
|---|
Design
| Rack mounting | Yes |
|---|
| Form factor | 1U |
|---|
| Product colour | White |
|---|
| LED indicators | Yes |
|---|
| Certification | , CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
|---|
Performance
| Internal memory | 512 MB |
|---|
| Flash memory | 128 MB |
|---|
Power
| Power supply included | Yes |
|---|
| Redundant power supply (RPS) support | No |
|---|
| Number of power supply units | 1 |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Power consumption (typical) | 380 W |
|---|
| Power consumption (max) | 397 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -20 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Heat dissipation | 85 BTU/h |
|---|
Weight & dimensions
| Width | 440 mm |
|---|
| Depth | 310 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 4830 g |
|---|
