Produktbeskrivning

24xGE SFP/4x10GE SFP+, 32K MAC, 128 Gbit/s, 204 Mpps, 100-240V, 50/60Hz, 38W



Viktiga egenskaper

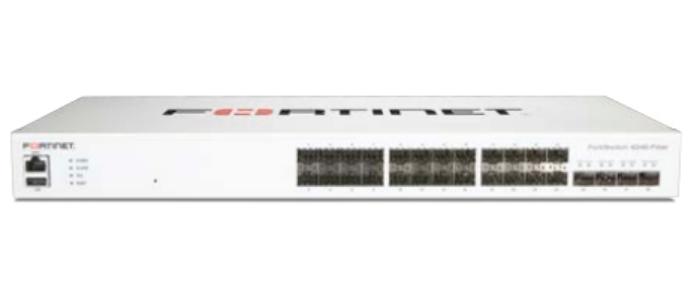

Fortinet Layer 2/3 FortiGate switch controller compatible switch with 24 x GE SFP ports, 4 x 10 GE SFP+ uplinks. Switch type: Managed. Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 128 Gbit/s. Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed

Fiber ports quantity	28
Fiber optic connector	SFP,SFP+
Console port	RJ-45

10G support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	4000

MAC address table	32000 entries
Switching capacity	128 Gbit/s
Forwarding rate	204 Mpps
Packet buffer memory	4 MB

Access Control List (ACL)	Yes

Rack mounting	Yes
Form factor	1U
Product colour	White
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Memory type	DDR4-SDRAM
Internal memory	1000 MB
Flash memory	256 MB
Mean time between failures (MTBF)	87600 h

Power supply included	Yes
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	36 W
Power consumption (max)	38 W

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Heat dissipation	132.5 BTU/h

Width	440 mm
Depth	200 mm
Height	44 mm
Weight	2550 g
