Produktbeskrivning

Security, Performance, and Manageability
The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threatconscious businesses of all sizes.

Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single-pane-of-glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch and campus deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.



Viktiga egenskaper

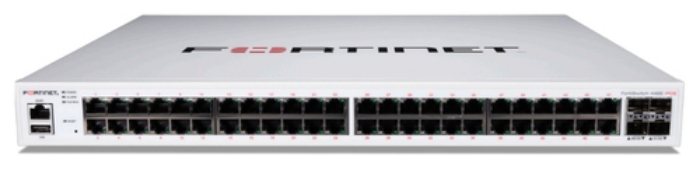

Fortinet 448E-POE. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP+ modules quantity: 10, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	10
Console port	RJ-45

Networking standards	IEEE 802.3af,IEEE 802.3at
Ethernet LAN data rates	1000 Mbit/s
Spanning tree protocol	Yes
Link aggregation	Yes
Number of VLANs	4000

MAC address table	32000 entries
Switching capacity	176 Gbit/s
Latency (1 Gbps)	1 µs
Packet buffer memory	4 MB

Access Control List (ACL) IPv4 entries	16000
Access Control List (ACL) IPv6 entries	8000

Rack mounting	Yes
Form factor	1U
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Memory type	DDR4-SDRAM
Internal memory	1000 MB
Flash memory	256 MB
Noise level	38.3 dB

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	421 W
Power consumption (max)	442.234 W

Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Heat dissipation	163.066 BTU/h

Width	440 mm
Depth	410 mm
Height	44 mm
Weight	6260 g
