Produktbeskrivning

24xRJ-45/4x10GE SFP+/2x40GE QSFP, 96K MAC, 288 Gbit/s, 428 Mpps, 100-240V, 50/60Hz, 75W



Viktiga egenskaper

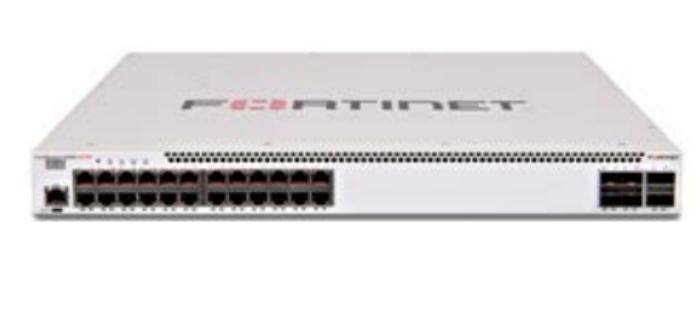

Fortinet Layer 2/3 FortiGate switch controller compatible switch with 24 x GE RJ45 ports, 4 x 10 GE SFP+ and 2 x 40 GE QSFP+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 96000 entries, Switching capacity: 288 Gbit/s. Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fiber ports quantity	6
Fiber optic connector	SFP+,QSFP
Console port	RJ-45

10G support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4000

MAC address table	96000 entries
Switching capacity	288 Gbit/s
Forwarding rate	428 Mpps
Packet buffer memory	4 MB

Access Control List (ACL)	Yes

Rack mounting	Yes
Form factor	1U
Product colour	White
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Memory type	DDR3-SDRAM
Internal memory	2000 MB
Flash memory	128 MB
Mean time between failures (MTBF)	87600 h

Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	73 W
Power consumption (max)	75 W

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Heat dissipation	247 BTU/h

Width	439 mm
Depth	350 mm
Height	44 mm
Weight	6200 g

Harmonized System (HS) code	85176990
