Produktbeskrivning

48xRJ-45/4x10GE SFP+/2x40GE QSFP, 750W PoE, 96K MAC, 336 Gbit/s, 512 Mpps, 100-240V, 50/60Hz, 961W



Viktiga egenskaper

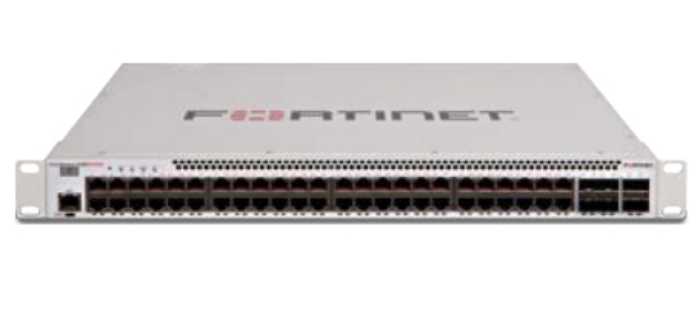

Fortinet Layer 2/3 FortiGate switch controller compatible PoE+ switch with 48 x GE RJ45 ports, 4 x 10 GE SFP+ and 2 x 40 GE QSFP+, with automatic Max 750W POE output limit. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Console port: RJ-45. MAC address table: 96000 entries, Switching capacity: 336 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed

Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fiber ports quantity	6
Fiber optic connector	QSFP,SFP+
Console port	RJ-45

Networking standards	IEEE 802.3af,IEEE 802.3at
10G support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	4000

MAC address table	96000 entries
Switching capacity	336 Gbit/s
Forwarding rate	512 Mpps
Packet buffer memory	4 MB

Access Control List (ACL)	Yes

Rack mounting	Yes
Form factor	1U
Product colour	White
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Memory type	DDR3-SDRAM
Internal memory	2000 MB
Flash memory	128 MB
Mean time between failures (MTBF)	87600 h

Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	925 W
Power consumption (max)	961 W

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	48
Total Power over Ethernet (PoE) budget	750 W

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Heat dissipation	318 BTU/h

Width	439 mm
Depth	350 mm
Height	44 mm
Weight	7140 g
