Produktbeskrivning

12x 1/2.5 GE RJ45, 12x 1/2.5 GE SFP, 4x 10G SFP+, 2x 40G QSFP+ ports, 421W



Viktiga egenskaper

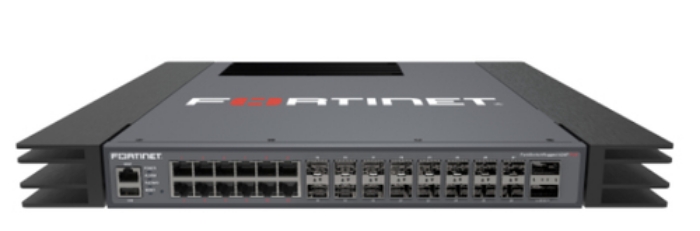

Fortinet FSR-424F-POE. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12, Installed SFP modules quantity: 12, Installed SFP+ modules quantity: 6, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 360 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting



Teknisk specifikation

Web-based management	Yes
Configuring Location Settings (CLI)	Yes

Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	12
Installed SFP+ modules quantity	6
Console port	RJ-45

Networking standards	IEEE 802.3af,IEEE 802.3at
Link aggregation	Yes
Spanning tree protocol	Yes
Number of VLANs	4000

MAC address table	32000 entries
Switching capacity	360 Gbit/s
Latency (1 Gbps)	1 µs
Number of queues	8

Access Control List (ACL)	Yes

Rack mounting	Yes
Product colour	White
International Protection (IP) code	IP40
Certification	FCC, CE, RCM, VCCI, BSMI (Class A), ICES, UKCA

Internal memory	1000 MB
Flash memory	256 MB
Fanless	Yes

Power source	AC
Power supply included	Yes

Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	421 W

Operating temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 90 %

Width	440 mm
Depth	410 mm
Height	44 mm
Weight	6293 g
