Produktbeskrivning

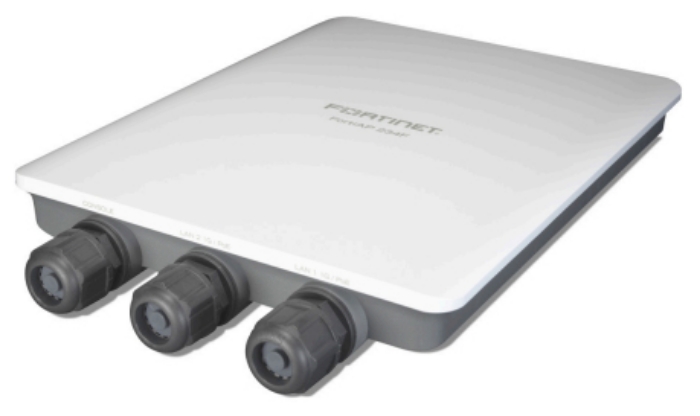

FortiAP 234F
This enterprise class Wi-Fi 6 ruggedized indoor/outdoor AP provides three radios with internal antennas as well as features such as OFDMA and dual 1 Gbps Ethernet ports. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 GHz and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.



Viktiga egenskaper

Fortinet FortiAP 234F. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1201 Mbit/s. Security algorithms: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White



Teknisk specifikation

2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1201 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 GHz
Networking standards	IEEE 802.11j,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.3ad,IEEE 802.3bz,IEEE 802.11a,IEEE 802.11ac,IEEE 802.11v,IEEE 802.3af,IEEE 802.11w,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11d,IEEE 802.11e,IEEE 802.3at,IEEE 802.11g,IEEE 802.11h,IEEE 802.1Q,IEEE 80
Channel bandwidth	80 MHz
MIMO	Yes
MIMO type	Multi User MIMO
Modulation	64-QAM,256-QAM,1024-QAM,BPSK,QPSK

Security algorithms	EAP-AKA,EAP-FAST,EAP-GTC,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,PEAP,WPA,WPA2,WPA3
Number of SSID supported	16

Ethernet LAN (RJ-45) ports	2
RS-232 interface	Yes

Power over Ethernet (PoE)	Yes
Power consumption (typical)	15.5 W

Placement	Ceiling,Wall
Product colour	White
International Protection (IP) code	IP67
Cable lock slot	Yes
Cable lock slot type	Kensington
Certification	CE, A

Antenna type	Internal
Antenna direction type	Directional
Antennas quantity	2
Antenna gain level (max)	3.5 dBi

Width	316 mm
Depth	218 mm
Height	42 mm
Weight	1307 g

Package weight	3600 g

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 80 °C

Quantity per pack	1 pc(s)
