Produktbeskrivning

While traditional security solutions are designed and intended for the world of offices and corporations, the FortiGate Rugged Series offers industrially-hardened , all-in-one security appliance that delivers specialized threat protection for securing critical industrial and control networks against malicious attacks.

Security Fabric
The Security Fabric is the cybersecurity platform that enables digital innovations. It delivers broad visibility of the entire attack surface to better manage risk. Its unified and integrated solution reduces the complexity of supporting multiple-point products, while automated workflows increase operational speeds and reduce response times across the Fortinet deployment ecosystem.

FortiOS
FortiGates are the foundation of the Fortinet Security Fabric—the core is FortiOS. All security and networking capabilities across the entire FortiGate platform are controlled with one intuitive operating system. FortiOS reduces complexity, costs, and response times by truly consolidating next-generation security products and services into one platform.



Viktiga egenskaper

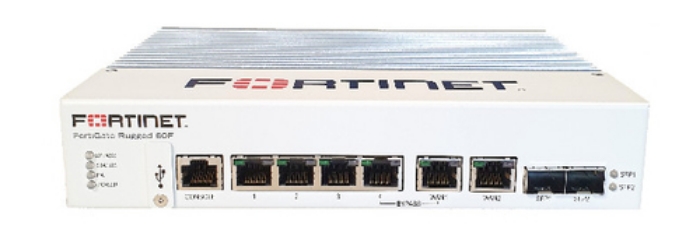

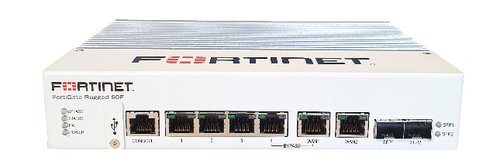

Fortinet Ruggedized, 4 x GE RJ45 Switch ports, 2 x Shared Media pairs (Including 2 x GE RJ45 ports, 2 x SFP slots). 1x RJ45 by-pass can be set up between WAN1 and PORT4. DB9 Serial.. Firewall throughput: 6 Gbit/s, VPN throughput: 0.4 Gbit/s, IPS/IDS throughput: 950 Mbit/s. Security algorithms: 256-bit AES, HTTPS, SHA-256, SSL/TLS. Connectivity technology: Wired, Console port: RJ-45. Input current: 2 A, Power consumption (typical): 15 W, Power consumption (max): 21 W. Width: 216 mm, Depth: 165 mm, Height: 42.7 mm



Teknisk specifikation

Firewall throughput	6 Gbit/s
VPN throughput	0.4 Gbit/s
IPS/IDS throughput	950 Mbit/s
SSL inspection throughput	460 Mbit/s
Firewall latency	3.1 µs
Security policies (max)	5000
Default number of virtual firewalls	10
Maximum number of virtual firewalls	10

Wi-Fi	No

Security algorithms	256-bit AES,HTTPS,SHA-256,SSL/TLS
Firewall security	Yes

LED indicators	Yes

Connectivity technology	Wired
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Console port	RJ-45
Number of console ports	1
SFP module slots quantity	2

Input current	2 A
Power consumption (typical)	15 W
Power consumption (max)	21 W

Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	20 - 90 %
Operating altitude	0 - 2250 m

Width	216 mm
Depth	165 mm
Height	42.7 mm

VPN throughput	400 Mbit/s
Firewall throughput	6000 Mbit/s
