Produktbeskrivning

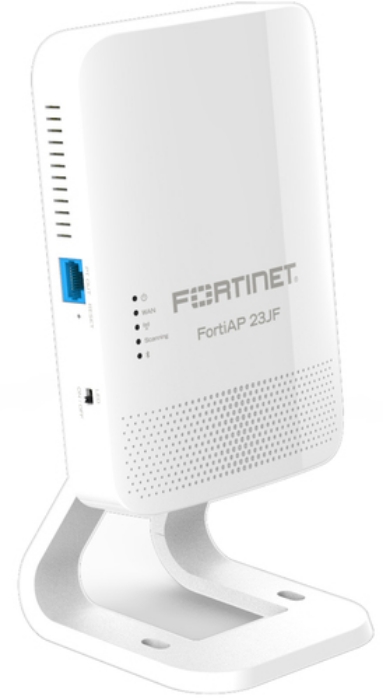

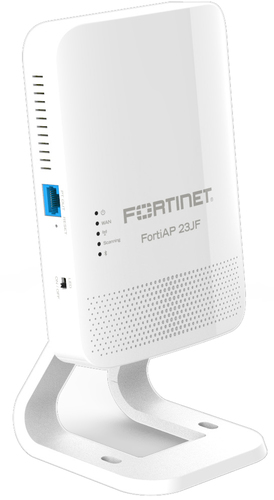

FortiAP 23JF
This enterprise class Wi-Fi 6 wall plate AP provides three radios with internal antennas as well as features such as OFDMA and is PSE-capable. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 GHz and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications. Additional features include PoE out for downstream devices and RJ45 passthrough. This access point can be installed in minutes, right over the existing wall plate.



Viktiga egenskaper

Fortinet FortiAP 23JF. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1200 Mbit/s. Security algorithms: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: White



Teknisk specifikation

2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 GHz
Networking standards	IEEE 802.11j,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.3bz,IEEE 802.11a,IEEE 802.11ac,IEEE 802.11v,IEEE 802.1af,IEEE 802.11ad,IEEE 802.11w,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11d,IEEE 802.11e,IEEE 802.3at,IEEE 802.11g,IEEE 802.11h,IEEE 802.1Q,IEEE 8
Channel bandwidth	80 MHz
MIMO	Yes
MIMO type	Multi User MIMO
Modulation	64-QAM,256-QAM,1024-QAM,BPSK,QPSK

Security algorithms	EAP-AKA,EAP-FAST,EAP-GTC,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,PEAP,WPA,WPA2,WPA3
Number of SSID supported	16

Ethernet LAN (RJ-45) ports	4
RS-232 interface	Yes

Power consumption (typical)	17.5 W

Placement	Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Certification	CE, Taiwan

Antenna type	Internal
Antennas quantity	3
Antenna gain level (max)	4 dBi

Compliance certificates	RoHS

Width	168 mm
Depth	117 mm
Height	28 mm
Weight	450 g

Package weight	700 g

Mounting kit	Yes

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C

Quantity per pack	1 pc(s)
