Produktbeskrivning

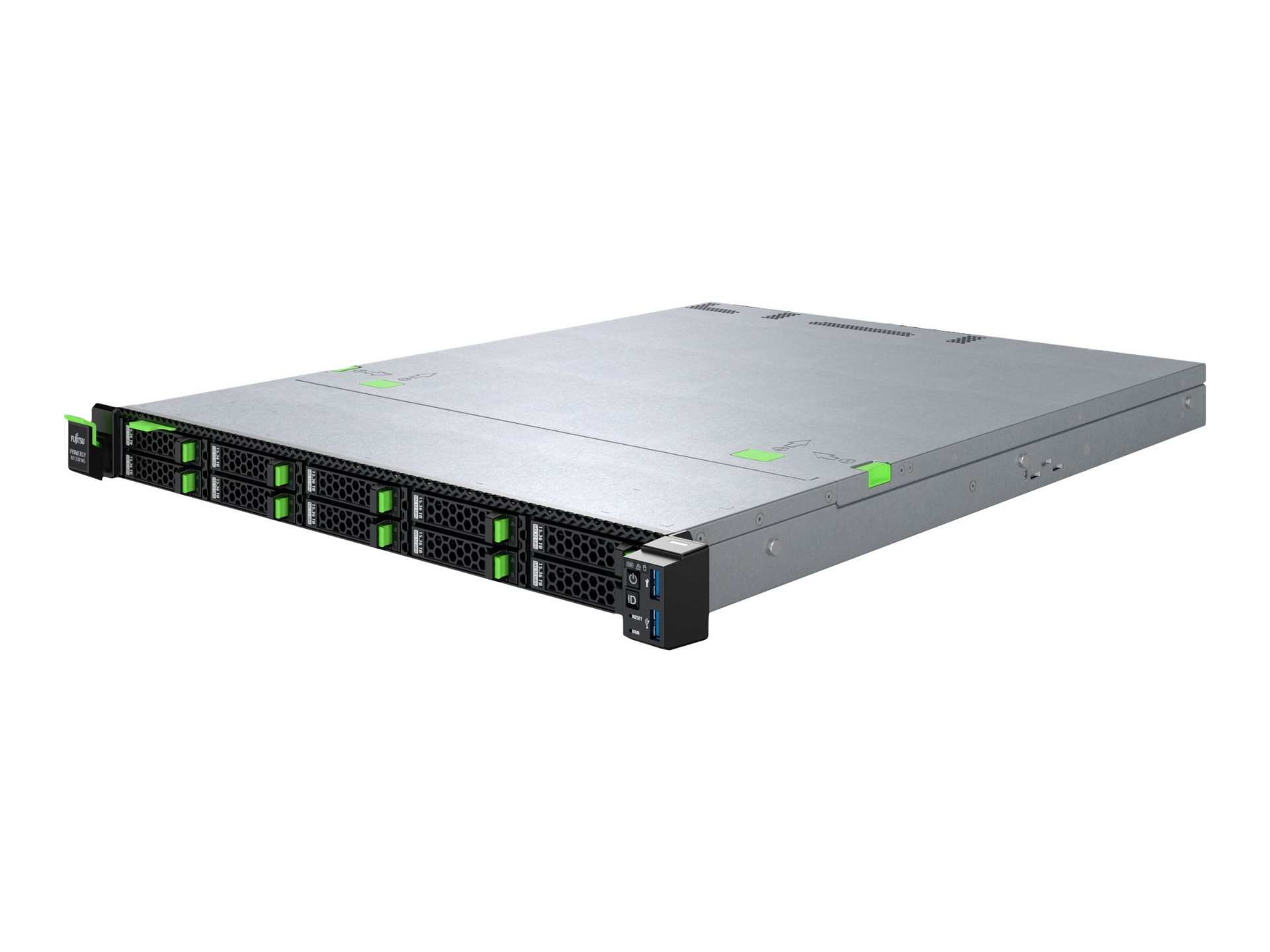

The FUJITSU Server PRIMERGY RX1330 M5 is a mono-socket 1U rack server designed for small businesses as well as remote/branch offices that require reliability, performance and serviceability to support their critical business and customer data needs. The PRIMERGY RX1330 M5 delivers the flexibility to increase compute, storage, and memory capacity. The server can be equipped with the Intel Xeon processor and provides the ability to run multiple applications at the same time.
Equipped with two PCIe Gen4, one PCIe 3.0 expansion slots and 2x Gbit LAN onboard, the PRIMERGY RX1330 M5 offers improved data transfer rates and higher networking speeds. By delivering high energy efficient PSUs, with the choice between standard and redundant power supplies as well as a modular approach for RAID and LAN controllers, the mono-socket server contributes to reduced operational costs. It provides a simple design for easy serviceability and comes along with the integrated Remote Management Controller (iRMC S6) to simplify server management. Integrated security and proven reliability help to ensure maximum uptime. In addition to some enhanced security protections for application data such as Intel SGX, the server also offers a lockable front bezel to avoid unauthorized physical access directly in the data center.
Egenskaper
Boost your productivityWorkload optimized performance for space and power constrained environments from the edge to the data center.
Scale your it according to your needsThe PRIMERGY RX1330 M5 delivers the flexibility to increase compute, storage, and memory capacity based on various configuration options and different base units.
Simplify your ITiRMC S6 enhances server administrator productivity with a variety of user-friendly features for remote management. Moreover, Infrastructure Manager (ISM) enables organizations to have centralized control over the entire infrastructure using a single user interface.
Grow your businessThe variety of expansion options makes the RX1330 M5 an ideal rack server platform for growing businesses. Outstanding configuration flexibility caters to a variety of business requirements and a range of HPE Qualified Options to fit most needs.
Teknisk specifikation
Allmänt
Typ | Server |
Formfaktor för produkt | Kan monteras i rack - 1U |
Inbyggda enheter | 5 x fläktar, status-LED |
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Skalbarhet för server | 1-vägs |
Antal interna fack | 4 |
Antal fack på framsidan | 1 |
Antal fack för hot-swap | 8 |
Lokalisering | Region: Europa |
Processor / Chipuppsättning
CPU | Intel Xeon E-2334 |
Klockfrekvens | 3.4 GHz |
Max. turbohastighet | 4.8 GHz |
Antal kärnor | Fyrkärnig |
Antal CPU | 1 |
Max. CPU-antal | 1 |
CPU-uppgraderbarhet | Uppgraderingsbar |
Huvudfunktioner för processor | Hyper-Threading-teknik, Intel Turbo Boost Technology 2, Intel Smart Cache |
Kretstyp | Intel C256 |
Cacheminne
Installerad storlek | L3-cache - 8 MB |
Cache/processor | 8 MB |
RAM
Installerad storlek | 16 GB / 128 GB (max) |
Teknik | DDR4 SDRAM - ECC |
Effektiv minneshastighet | 3200 MHz |
Minneshastighet | 3200 MHz |
Formfaktor | DIMM 288-pin |
Kortplatser | 4 (Total) / 3 (tom) |
Egenskaper | ECC |
Konfigurationsegenskaper | 1 x 16 GB |
Kontrollerkort
Typ | 1 x SATA |
Antal kanaler | 7 |
Optisk lagring
Typ | Ingen optisk drivenhet |
Bildskärm
Bildskärmstyp | Ingen. |
Grafikstyrenhet
Videogränssnitt | VGA |
Nätverk
Ethernet-portar | 2 x Gigabit Ethernet |
Ethernet-styrenhet | Intel I210 |
Datalänkprotokoll | Ethernet, Fast Ethernet, Gigabit Ethernet |
Kontroll för fjärradministration | Integrated Remote Management Controller (iRMC S6) |
Funktioner | PXE-stöd |
Expansion/Anslutning
Fack | 8 (totalt)/ 8 (ledig) x hot-swap 2.5" 4 (totalt)/ 4 (ledig) x intern 2.5" 2 (totalt)/ 2 (ledig) x intern M.2 1 (totalt)/ 1 (ledig) x extern 5,25 tum (9,5 mm höjd) |
Kortplatser | 2 (totalt)/ 2 (ledig) x PCIe 4.0 x8 - lågprofil 1 (totalt)/ 1 (ledig) x PCIe 3.0 x4 - lågprofil |
Gränssnitt | 2 x USB 2.0 (2 bakre) 4 x USB 3.2 Gen 1 (2 på framsidan, 2 på baksidan) 1 x USB-C 3.2 Gen 2 (1 fram) 2 x LAN (Gigabit Ethernet) 1 x VGA - DB-15 1 x hantering (Gigabit Ethernet) - RJ-45 |
Diverse
Inkluderade tillbehör | Rackmonteringspaket, blank strömförsörjning |
Medföljande kablar | Strömkabel medföljer ej |
Standarder som följs | FCC klass A-certifierad, BSMI, GS, ICES-003, CB, CCC, RoHS, WEEE, KC, VCCI Class A, JIS C 61000-3-2, EAC, RCM, NMB-003 Class A, ErP Lot 9, NRTLc/us |
Strömtillförsel
Typ av enhet | Nätaggregat - hot-plug |
Max antal som stöds | 1 |
Nätspänning | AC 100-240 V (50/60 Hz) |
Effekt | 500 Watt |
Effektivitet | 96% Titanium |
Operativsystem / Programvara
Medföljande OS | Inget operativsystem |
Certifierade OS | Red Hat Enterprise Linux 8.0, Microsoft Windows Server 2019 Essentials, Microsoft Windows Server 2019 Standard, Microsoft Windows Server 2019 Datacenter, SUSE Linux Enterprise Server 15, Microsoft Windows Server 2022 Datacenter, Microsoft Windows Server 2022 Standard, Microsoft Windows Server 2022 Essentials, VMware vSphere 8.0, VMware vSphere 7.0 |
Mjukvara | iRMC S6 eLCM aktiveringslicens |
Tillverkarens garanti
Service och support | Begränsad garanti - 1 år - på platsen |
Mått och vikt
Mått och vikt (komponenter) | 48.26 cm - 61.2 cm - 4.3 cm - med frontram |
Bredd | 43.54 cm |
Djup | 61.2 cm |
Höjd | 4.3 cm |
Miljöparametrar
Min temperatur vid drift | 10 °C |
Max temperatur vid drift | 35 °C |
Luftfuktighet vid drift | 8 - 85 % (icke-kondenserande) |
Ljudnivå | 26 dBA |
