Produktbeskrivning

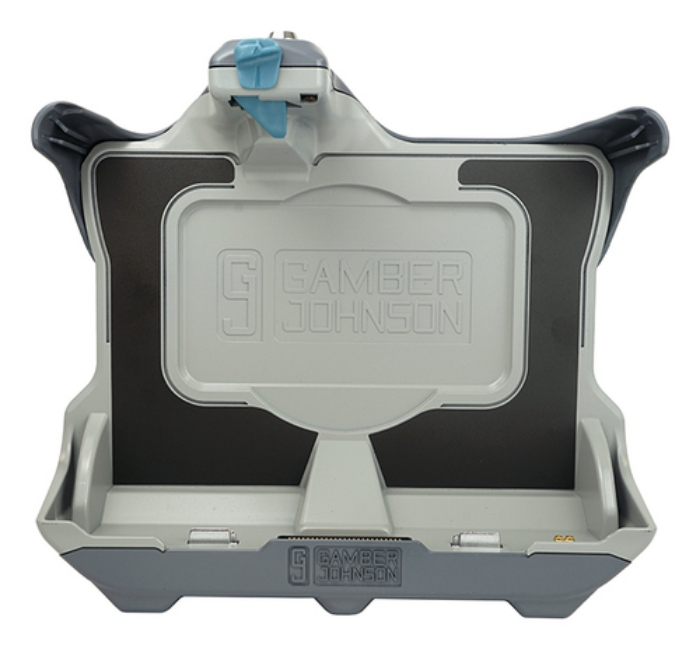

Gamber-Johnson’s Panasonic A3 Tablet docking station (Dual RF) accommodates the tablet’s hand strap with the extended battery. Port replication on this docking station includes dual powered USBs, an ethernet port, power input and an external antenna switch to control the use of an external antenna option. The front-located latch button makes one-handed docking/release very easy, attaches to most Gamber-Johnson motion attachments with the VESA 75mm mounting pattern.

Easy to use one-handed operation
- Insert bottom of computer into the docking station, push top of computer against latch button until latch engages
- To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station



Viktiga egenskaper

Gamber-Johnson 7160-1416-02. Basic device type: Tablet, Brand compatibility: Panasonic, Compatibility: TOUGHBOOK A3. Width: 287.8 mm, Depth: 116.6 mm, Height: 261.1 mm, Weight: 980 g. Product colour: Black, Grey



Teknisk specifikation

Basic device type	Tablet
Brand compatibility	Panasonic
Compatibility	TOUGHBOOK A3
Product colour	Black,Grey
VESA mounting	Yes
Maximum VESA mount	75 x 75 mm
Cable lock slot	Yes
Dual antenna pass-through	Yes
Card reader integrated	No

Bluetooth	No
Ethernet LAN	Yes

USB 2.0 ports quantity	2
Audio output	No
HDMI	No
Ethernet LAN (RJ-45) ports	1
Number of antenna connectors	2
DC-in jack	Yes

Power source type	DC
DC input voltage	15 V

Width	287.8 mm
Depth	116.6 mm
Height	261.1 mm
Weight	980 g

Quantity	1

Adapter included	No

Doesn't contain	Cadmium,Lead,Mercury (element)

Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
