Produktbeskrivning

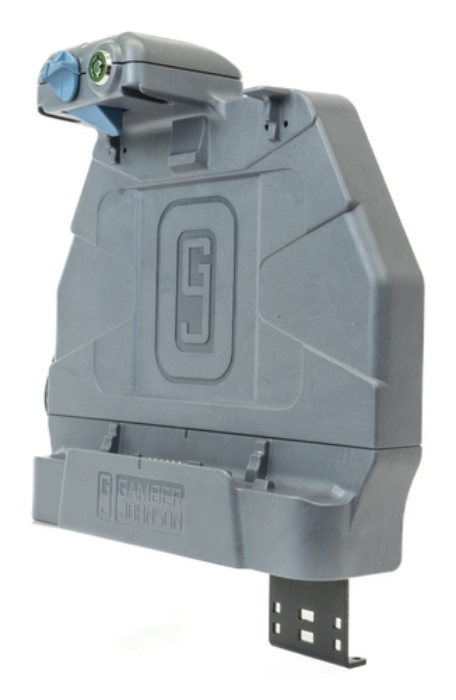

Combine the Zebra ET4X enterprise tablet with Gamber-Johnson’s new vehicle docking station, with dual powered USBs, Serial, and ethernet port replication for added productivity. Each powered USB port provides 1.5A, strong enough to power a long-range scanner and a printer or other peripheral. This dock will keep the ET4X tablet charged all day long and provides the port replication to connect the right peripheral devices to get the job done.
Power Supply:None, use one of the following:
- Lind 11-16V Automobile Power Adapter (7300-0415)
- LIND 12-32V Isolated Power Adapter (7300-0466)
- LIND 20-60V Isolated Power Adapter (7300-0467)
- LIND 72-110V Isolated Power Adapter (7300-0418)
- Lind AC-12V Material Handling Power Adapter (7300-0472)
Testing Specifications:- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
- SAE J1455 Crash Tested
- Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
- RoHS, FCC, CE Certifications
- RCM
- Safety
Viktiga egenskaper
Gamber-Johnson ET40/45. Basic device type: Tablet, Brand compatibility: Zebra, Compatibility: Zebra ET4X 8" Rugged Tablet (Zebra's rugged frame is required in order to work with docking station). Docking connector type: Pogo. Width: 196.9 mm, Depth: 71.1 mm, Height: 228.6 mm, Weight: 590 g. Product colour: Grey
Teknisk specifikation
Performance
| Basic device type | Tablet |
|---|
| Brand compatibility | Zebra |
|---|
| Compatibility | Zebra ET4X 8" Rugged Tablet (Zebra's rugged frame is required in order to work with docking station) |
|---|
| Product colour | Grey |
|---|
| VESA mounting | Yes |
|---|
| Maximum VESA mount | 75 x 75 mm |
|---|
| Built-in speaker(s) | No |
|---|
| Card reader integrated | No |
|---|
| Plug and Play | Yes |
|---|
Ports & interfaces
| Docking connector type | Pogo |
|---|
| USB hub | No |
|---|
| USB 2.0 ports quantity | 2 |
|---|
| Audio output | No |
|---|
| HDMI | No |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| RS-232 interface | Yes |
|---|
| Serial ports quantity | 1 |
|---|
| DC-in jack | Yes |
|---|
Power
| Power source type | DC |
|---|
| DC input voltage | 12 V |
|---|
Weight & dimensions
| Width | 196.9 mm |
|---|
| Depth | 71.1 mm |
|---|
| Height | 228.6 mm |
|---|
| Weight | 590 g |
|---|
Packaging content
| Adapter included | No |
|---|
| Packaging content | Mounting Hardware |
|---|
Technical details
| Compliance certificates | CE,Federal Communications Commission (FCC),RCM,RoHS,UKCA |
|---|
