The versatility to drive cross-sector performance

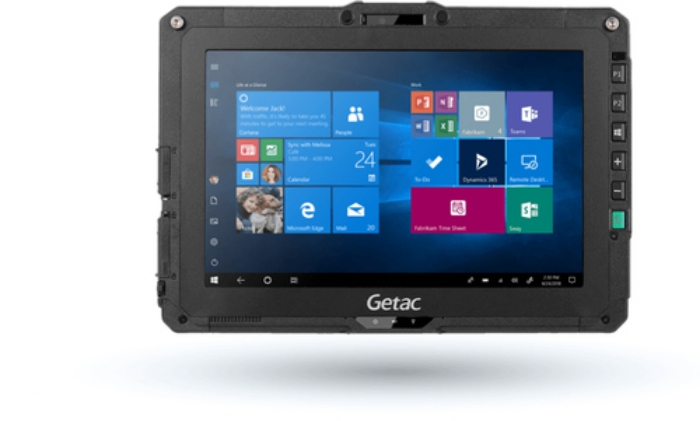

The UX10 has been designed to deliver portable performance across a range of industries, including Industrial Manufacturing, Public Safety and Utility Services, in even the most demanding environments.

Ultimately secure rugged tablet
An optional hard handle makes the UX10 easy to grip and carry, allowing you to take the computing power you require to the place it is most needed.

A detachable keyboard with retractable hard handle further optimises worker productivity. For total security in authenticating users, the UX10 has an optional integrated fingerprint reader, smart card reader, magnetic stripe reader, an RFID reader, and can also offer a Windows Hello face-authentication camera.

The connected tablet
The UX10 seamlessly supports digital transformation, offering digital connectivity through BT, WiFi, and optional 4G LTE. An optional RS232 port can support legacy equipment. An optional RFID reader allows information feed-back into the management system. All these functionalities ensure the UX10 stays connected no matter whether outdoors or indoors.

The ‘always-on’ tablet
In a world where devices need to work 24/7/365 power-up continuity is essential – in portable devices that means a focus on battery configuration. The UX10 offers a range of battery configurations and options, including an optional high capacity battery and an optional bridge battery that ensures a ‘hot swap’ capability. In effect you need never power-down the UX10, making it ideal if the device is pooled between workers or required across multiple work shifts.

The usable-in-all conditions tablet
Drop resistance and temperature tolerance aside, the LumiBond® screen ensures usability in all conditions. 1000 nits of brightness make the display readable even in sunlight, whilst rain and glove touch capability guarantee visibility and productivity in even the most extreme conditions.

ATEX and IECEx Certified
Certified for hazardous locations, the UX10 fully rugged tablet offers optional ATEX and IECEx Zone 2/22 certification for use in potentially explosive atmospheres.



Viktiga egenskaper

Getac UX10. Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels. Internal storage capacity: 256 GB. Processor frequency: 1.6 GHz, Processor family: Intel® Core™ i5, Processor model: i5-8265U. Internal memory: 8 GB. Rear camera resolution (numeric): 8 MP, Rear camera type: Single camera, Front camera. Top Wi-Fi standard: Wi-Fi 5 (802.11ac). Weight: 1.22 kg. Operating system installed: Windows 10 Pro. Product colour: Black



Teknisk specifikation

Display diagonal	10.1 "
Display resolution	1920 x 1200 pixels
Panel type	IPS
Touchscreen type	Capacitive

Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8265U
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	1.6 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor package size	46x24 mm
Thermal Monitoring Technologies	Yes
Processor lithography	14 nm
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
System bus rate	4 GT/s
Configurable TDP-down frequency	0.8 GHz
Bus type	OPI
Processor codename	Whiskey Lake
PCI Express configurations	1x4,2x2
Processor operating modes	64-bit
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2

Internal memory	8 GB
Internal memory type	DDR4-SDRAM

Internal storage capacity	256 GB
Card reader integrated	No
Compatible memory cards	Not supported
Storage media	SSD

Graphics card family	Intel
Graphics card	UHD Graphics 620

Rear camera type	Single camera
Rear camera resolution (numeric)	8 MP
Auto focus	Yes
Front camera	Yes

Bluetooth	Yes
Bluetooth version	5.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
Combo headphone/mic port	Yes
DC-in jack	Yes

Form factor	Slate
Product colour	Black
Device type	Tablet PC
International Protection (IP) code	IP65

Trusted Platform Module (TPM)	Yes

Cable lock slot	Yes
Cable lock slot type	Kensington

Platform	Windows
Operating system installed	Windows 10 Pro

Execute Disable Bit	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Embedded options available	No
Idle States	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel Enhanced Halt State	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel Clear Video Technology	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel Flex Memory Access	Yes
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI	No
Intel® Secure Key	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel 64	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel® OS Guard	Yes
Intel Trusted Execution Technology	No
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Intel® Turbo Boost Technology	2.0
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel TSX-NI version	0.00

Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	4200 mAh
Battery voltage	11.1 V

AC adapter power	65 W
AC adapter input voltage	100-240 V
AC adapter frequency	50 - 60 Hz

Width	276.8 mm
Depth	194.5 mm
Height	23.5 mm
Weight	1220 g

Operating temperature (T-T)	-29 - 63 °C
Storage temperature (T-T)	-51 - 71 °C
Operating relative humidity (H-H)	0 - 95 %

Processor socket	BGA 1528
Processor ARK ID	149088
