All-in-one video conferencing solution with optional expansion audio

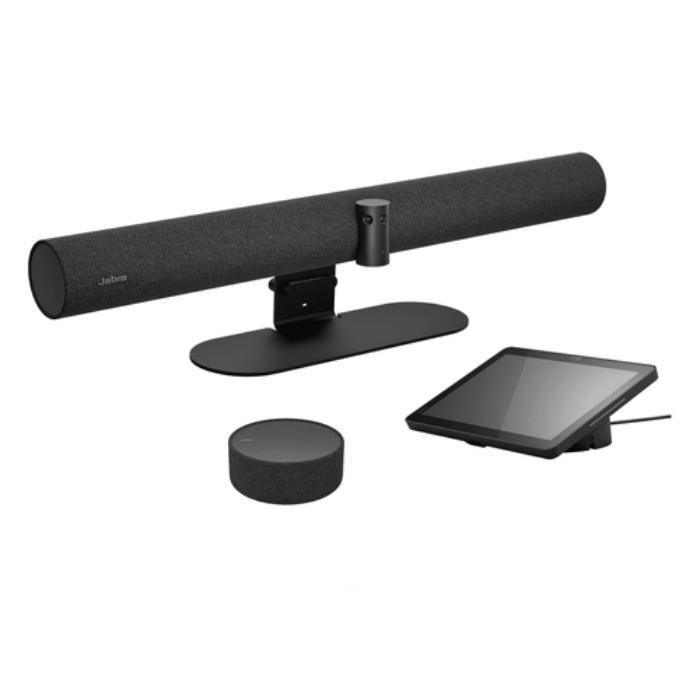

Why you'll love Jabra PanaCast 55 VBS

Maximize your meeting space
A 180° field of view and 4K panoramic video ensure everyone is seen, even close to the screen or against the wall.

Outstanding audio quality
An array of 8 beamforming, noise‑cancelling microphones and 4 powerful speakers delivers clear, room‑filling sound.

Audio flexes with your needs
Add the PanaCast SpeakerMic to extend audio to the back of the room, with seamless sound mixing and flexible mounting options.

Natural, AI-powered meeting experiences
Dynamic Composition, Virtual Director, Intelligent Zoom, and Intelligent Meeting Space keep participants in frame and focused.

Quick, scalable installation
From box to meeting in minutes with in‑box provisioning, multiple mounting options, and support for permanent BYOD mode.

Secure and easy to manage
Built on MDEP for secure, future‑ready performance, and designed to work seamlessly with Microsoft Teams and Zoom.



Viktiga egenskaper

Jabra PanaCast 55 VBS. Product type: Group video conferencing system. HD type: 4K Ultra HD. Digital zoom: 6x. Ethernet LAN, Wi-Fi. Bluetooth. Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels. Product colour: Black



Teknisk specifikation

Product type	Group video conferencing system
Number of cameras	3
Bluetooth	Yes
Bluetooth version	5.1
Product colour	Black
Proximity sensor	Yes
Temperature sensor	Yes
Humidity sensor	Yes
AirPlay	Yes
Wall mountable	Yes
PTZ control	Yes

HD type	4K Ultra HD
Maximum video resolution	3840 x 2160 pixels

Built-in speaker(s)	Yes
Number of speakers	4
Tweeter	Yes
Number of tweeter drivers	2
Tweeter diameter	20 mm
Woofer	Yes
Number of woofer drivers	2
Woofer diameter	50 mm
Frequency range	80 - 20000 Hz
Audio beamforming	Yes
Echo cancellation	Yes
Noise reduction	Yes
RMS rated power	20 W

HDMI ports quantity	2
USB connector type	USB Type-A,USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power over Ethernet (PoE) ports quantity	1
AUX out	Yes

Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Networking standards	IEEE 802.3af
Supported network protocols	IPv4, IPv6
Auto MDIX IEEE	Yes
DHCP client	Yes
Static IP	Yes
Web-based management	Yes

Digital zoom	6 x
Camera resolution	3840 x 1080 pixels
Horizontal field of view	180 °
Vertical field of view	54 °
Camera privacy shutter	Yes

Built-in display	Yes
Display diagonal	10.1 "
Display resolution	1920 x 1200 pixels
Touchscreen	Yes

Microphone sensitivity	-37 dB
Microphone frequency	100 - 16000 Hz
Number of microphones	8

Telepresence	No
People counting	Yes
Cable lock slot	Yes
Cable management	Yes

Maximum operating altitude	4876.8 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	15 - 80 %

AC input voltage	100 - 240 V
DC output voltage	12 V
DC output current	5 A

Monitor dimensions (WxDxH)	248 x 156 x 85 mm
Monitor weight	958 g
Width	730 mm
Depth	146 mm
Height	77 mm
Weight	2259 g
Package width	1065 mm
Package depth	210 mm
Package height	175 mm
Package weight	5760.5 g

Cables included	HDMI,AC
Wall mounting kit	Yes
AC adapter included	Yes
