Produktbeskrivning

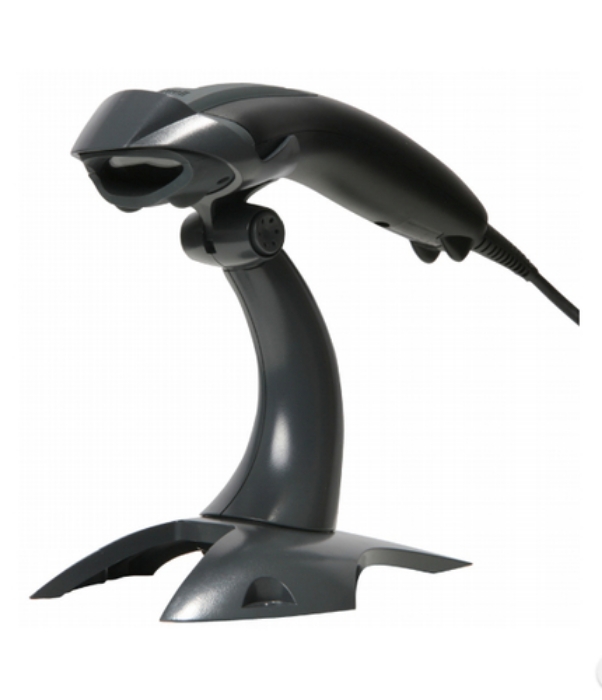

Built on the platform of the world’s best-selling single-line laser scanner, Honeywell’s Voyager® 1200g delivers aggressive scan performance on virtually all linear bar codes, including poor quality and damaged codes. Updated object detection, and automatic in-stand detection and configuration enable class-leading presentation scanning that maximizes throughput. Superior scan performance matched with a reliable design combine to provide a versatile linear scanning solution.

Outstanding scan performance on poor quality and damaged bar codes maintains productivity by providing a worry-free linear scanning solution that minimizes the need for manual data entry

Class-leading presentation scanning increases throughput by providing object detection and automatic in-stand detection and configuration

Superior out-of-box experience simplifies set up with tool-free stand assembly; automatic in-stand detection and configuration; and automatic interface detection and configuration

Contemporary, ergonomic design ensures operator comfort and productivity by incorporating an integrated finger groove in a sleek, lightweight industrial design that fits well in most hands

CodeGate® technology enables users to ensure that the desired bar code is scanned before transmitting data, making the scanner ideal for use in menu scanning applications

Multi-interface design minimizes costs by delivering support for USB, keyboard wedge, and RS232 interfaces in a single scanner



Viktiga egenskaper

Honeywell Voyager 1200g. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: RS-232, USB, Keyboard wedge. Product colour: Black, Housing material: Plastic, LED indicators: Power. Power source type: USB, Power consumption (typical): 0.7 W, Power consumption (standby): 0.35 W. Weight: 125 g, Width: 180 mm, Depth: 66 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D
Sensor type	Laser
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Read rate (max)	100 reads/s
Light levels (direct sunlight)	0 - 70000 lx
Pitch reading angle	60 - 60 °

Connectivity technology	Wired
Standard interfaces	RS-232,USB,Keyboard wedge

Product colour	Black
Housing material	Plastic
LED indicators	Power
Certification	CE DoC

Power source type	USB
Power consumption (typical)	0.7 W
Power consumption (standby)	0.35 W
Input voltage	5 V

Width	180 mm
Depth	66 mm
Height	97 mm
Weight	125 g

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95 %

Harmonized System (HS) code	84716070

Shockproof	Yes
