Produktbeskrivning

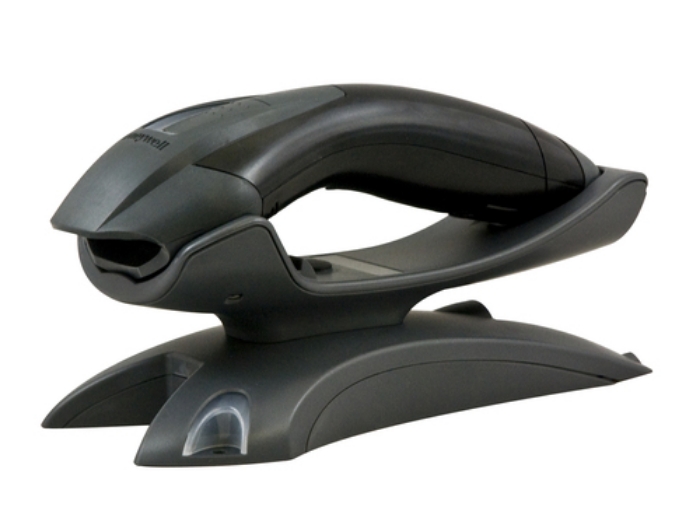

Honeywell’s Voyager1202g-bf single-line laser scanner incorporates breakthrough battery-free technology, offering the freedom of Bluetooth wireless technology without the maintenance hassle or long recharge time associated with traditional batteries. Like all other Voyager scanners, the 1202g-bf delivers aggressive linear bar code scanning performance—even on poor quality or damaged bar codes

Specifications

Battery-Free Wireless Technology: Fully charges in less than 35 seconds with a wall power adapter, and provides short-term power for at least 100 wireless scans.1 By eliminating the battery, a common maintenance headache is removed, and the scanner is lighter and more environmentally friendly.
Bluetooth Wireless Technology: Grants wireless freedom of movement up to 10 meters (33 feet) from the base, depending on user environment.
Reliable Bar Code Reading: Increase throughput and reduce the potential for hand-keyed errors by quickly scanning a variety of 1D bar codes, including those that are damaged or poor quality.
Automatic Interface Configuration: Supports all popular interfaces in one device, replacing the time-consuming process of scanning programming bar codes with automatic interface detection and configuration.
Paging Functionality: Simply press the button on the base to locate your lost scanner; Voyager responds with a series of beeps and blinking lights on its indicator panel.

1202G-2USB-5BF USB Kit:
Black BT 10m battery free scanner (1202g-2-BF), charge & communication base (CCB00-010BT-01N-BF), USB Type A 3m straight cable (CBL-500-300-S00), and documentation. Power Supply PS-05-1000W-X can be ordered separately B USB Kit



Viktiga egenskaper

Honeywell 1202g-2USB-5BF. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Laser. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Data transfer rate: 3 Mbit/s. Product colour: Black, International Protection (IP) code: IP42. Power source type: Battery, Battery life: 12 h, Charging time: 4 h. Weight: 180 g, Width: 66 mm, Depth: 180 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D
Sensor type	Laser
Pitch reading angle	60 - 60 °

Connectivity technology	Wireless
Standard interfaces	Bluetooth
Data transfer rate	3 Mbit/s
Wireless range	10 m
Bluetooth version	2.1+EDR
Operating frequency	2.4 - 2.5 MHz

Product colour	Black
International Protection (IP) code	IP42

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	1800 mAh
Number of reads per charge	45000
Battery life	12 h
Charging time	4 h
Input voltage	5 V

Width	66 mm
Depth	180 mm
Height	92 mm
Base dimensions (WxDxH)	200 x 67 x 97 mm
Base weight	185 g
Weight	180 g

Charging base	Yes

Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-5 - 35 °C
Operating relative humidity (H-H)	0 - 95 %

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
