Produktbeskrivning

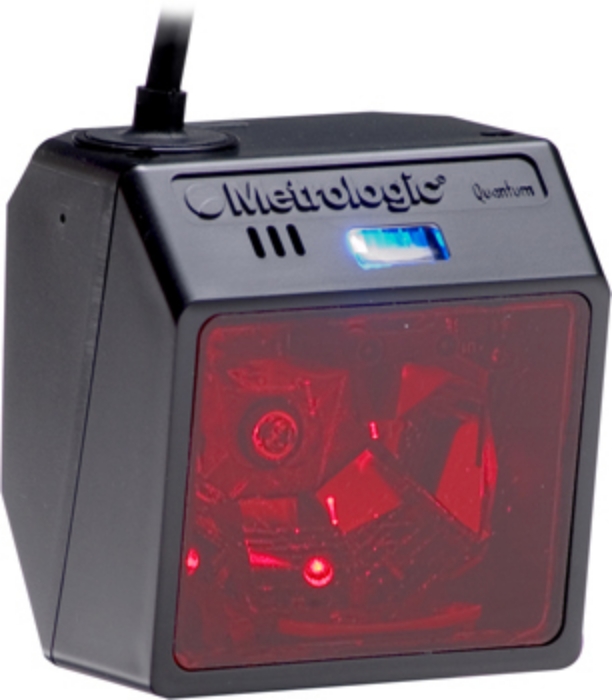

The IS3480 is an omnidirectional laser scan engine that integrates with a variety of devices including interactive kiosks, price lookup systems, ATMs, bill payment, reverse vending machines and controlled access. Its high scanning rate, effective scan pattern and proven reliability make it an ideal solution for self-service applications where most users are untrained.



Viktiga egenskaper

Honeywell IS3480 QuantumE. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 2.1 m. Product colour: Black, LED indicators: Status, Certification: FCC Part 15, ICES-003, EN55022 Class B, CE, ROHS, UL. Power source type: AC, Input voltage: 5 V, Power consumption: 275 mA. Weight: 170 g, Width: 63 mm, Depth: 50 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	Code 39,U.P.C.
2D (matrix & stacked) barcodes supported	Data Matrix,PDF417,QR Code
Sensor type	Laser
Wavelength	650 nm

Connectivity technology	Wired
Standard interfaces	USB
Cable length	2.1 m

Product colour	Black
LED indicators	Status
Certification	FCC Part 15, ICES-003, EN55022 Class B, CE, ROHS, UL

Power source type	AC
Input voltage	5 V
Power consumption	275 mA

Width	63 mm
Depth	50 mm
Height	68 mm
Weight	170 g

Operating temperature (T-T)	-20 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	5 - 95 %

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
Layers per pallet	400 pc(s)
