Produktbeskrivning

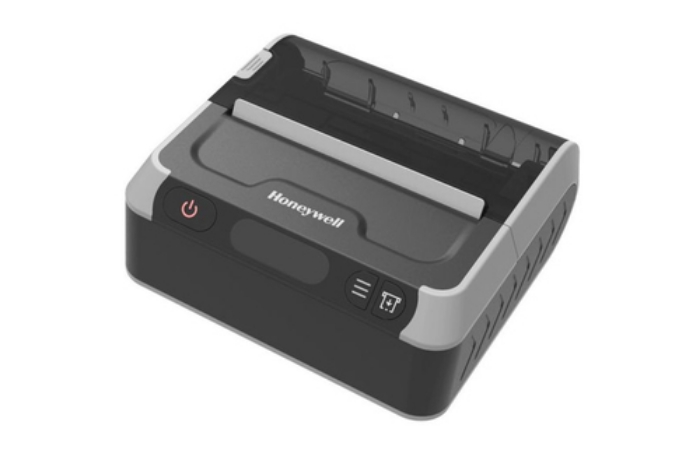

The MPD31D is a light weight mobile printer with best in-class performance and economical price. It can be used in manufactory, warehouse, logistics, retail, public utilities and healthcare, healthcare.
MPD31D is a 3 inch unit which can support one 1D, QR code, image, curves printing. It can also work with smart terminal devices like mobility as total solution.
MPD31D can support both receipt and label printing. Compatible with black mark paper, gap label, successive paper, seam paper, Sewing paper, continuous paper, lineless paper.
The MPD31D are fast mobile label printers for use in the most rugged environments. They feature the latest wireless technology for easy, untethered use, increasing worker productivity.
Viktiga egenskaper
Honeywell MPD31D. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 90 mm/sec. Connectivity technology: Wireless, Bluetooth, Bluetooth version: 4.0, USB port. Product colour: Black, Grey
Teknisk specifikation
Printing
| Print technology | Direct thermal |
|---|
| Colour | No |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 90 mm/sec |
|---|
| Maximum printing width | 300 mm |
|---|
Paper handling
| Maximum roll diameter | 43 mm |
|---|
| Media thickness | 0.18 mm |
|---|
| Maximum label width | 72 mm |
|---|
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 4.0 |
|---|
| Bluetooth Low Energy (BLE) | Yes |
|---|
| USB port | Yes |
|---|
Performance
| Page description languages | CPCL-native,ESC,ESC/POS,TSPL,ZPL |
|---|
| Internal memory | 64 MB |
|---|
| Flash memory | 64 MB |
|---|
| Built-in barcodes | Code 11,Code 128 (A/B/C),Code 39,Code 93,EAN13,EAN8,GS1 DataMatrix,MSI,PDF417,QR Code |
|---|
Design
| Product colour | Black,Grey |
|---|
| Built-in display | Yes |
|---|
| Display | OLED |
|---|
| Colour display | Yes |
|---|
| Control type | Buttons |
|---|
Power
| AC adapter output voltage | 5 V |
|---|
| AC adapter output current | 2 A |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery capacity | 2100 mAh |
|---|
| Battery voltage | 7.4 V |
|---|
Operational conditions
| Operating relative humidity (H-H) | 20 - 85 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
| Storage temperature (T-T) | -20 - 70 °C |
|---|
| Operating temperature (T-T) | -10 - 50 °C |
|---|
Weight & dimensions
| Width | 105 mm |
|---|
| Depth | 51 mm |
|---|
| Height | 108 mm |
|---|
| Weight | 400 g |
|---|
Packaging content
| Cables included | Micro-USB |
|---|
| Batteries included | Yes |
|---|
| Quick start guide | Yes |
|---|
| Manual | Yes |
|---|
Technical details
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |
|---|
| Sustainability compliance | Yes |
|---|
