Produktbeskrivning

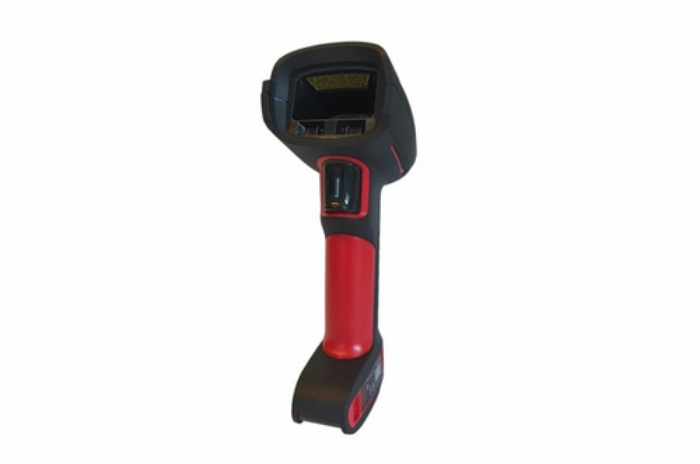

Ensure maximum productivity and uptime with Granit™ 1990iXR expanded range ultra-rugged barcode scanner. Best-in-class durability ensures low TCO. Premium scanning performance ensures even damaged or low quality codes scan quickly. Granit XP expands capabilities and redefines ultra-rugged scanning.

Following a legacy of successful deployments, the next generation Granit™ XP scanners expand capabilities and redefine ultra-rugged scanning. With a best-in-class 10’ drop spec, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, fork trucks, and picking trucks. The 1 meter (3.3 foot) tumble test indicates long term durability with daily knocks and drops from workstation or waist height. A best-in-class 7,000 tumble specification ensures Granit™ scanners will be ready to work for the long term. And IP67 dust and moisture sealing protect scanning performance under harsh treatment.With FlexRange technology, Granit 1990iXR model begins with no-sacrifice near field scanning, and expand that to read UPC codes to 1.5m (5 ft) and 100 mil (2.54mm) rack labels at 10m (33 ft), seamlessly handling many warehouse/distribution center and manufacturing workflows. Bad labels commonly occur in the warehouse/DC and industrial space due to low quality printing or damage during handling. Granit XP, built on Honeywell’s next-generation imaging platform, ensures that otherwise challenging labels do not create a bottleneck in your process.The Granit™ XP 1990iXR model offers high-durability, extreme performance scanning for scanning operations from contact to the top rack of the warehouse. Created for applications where high speed scanning is needed to maximize productivity, and where durability is non-negotiable for low total cost of ownership, the Granit™ XP 1990iXR scanner offers the optimal solution.



Viktiga egenskaper

Honeywell 1990IXR-3-R. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Code 128, Code 39, PDF417, UPC-A. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Black, Red, International Protection (IP) code: IP65, IP67, Print contrast: 20%. Power source type: Battery, DC, Power consumption (typical): 2.35 W, Power consumption (standby): 0.5 W. Weight: 320 g, Width: 192 mm, Depth: 76 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Code 39,Data Matrix,PDF417
Linear (1D) barcodes supported	Code 128,Code 39,PDF417,UPC-A
Optical sensor resolution (W x H)	1280 x 800 pixels
Light levels (direct sunlight)	0 - 100000 lx
Yaw reading angle	-65 - 65 °

Connectivity technology	Wired
Standard interfaces	RS-232,USB

Product colour	Black,Red
International Protection (IP) code	IP65, IP67
LED indicators	Yes
Print contrast	20 %

Power source type	Battery,DC
Power consumption (typical)	2.35 W
Power consumption (standby)	0.5 W
Input voltage	4 - 5.5 V
Power consumption	2.35 mA

Width	192 mm
Depth	76 mm
Height	100 mm
Weight	320 g

Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-40 - 70 °C

Warranty period	3 year(s)
