Produktbeskrivning

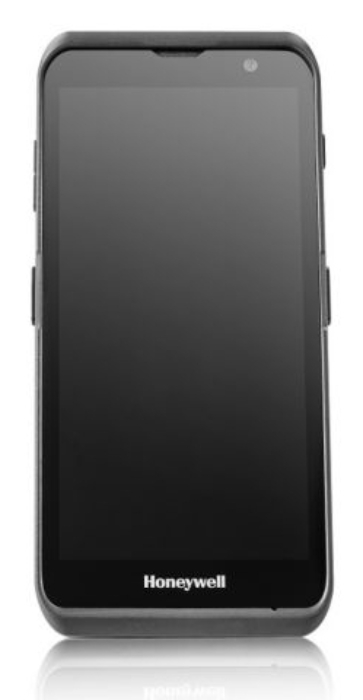

The Honeywell ScanPal™ EDA5S is an enterprise-class mobile computer that provides secure connectivity between frontline workers and backend business systems. It is designed for rugged use in transportation & logistics and healthcare applications.
The ScanPal EDA5S is Honeywell’s new ScanPal series mobile computer equipped with Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE communication.
A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day.
The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication.
The EDA5S incorporates the all-new and powerful Honeywell S0703 scan engine which enables accurate and fast reading even of damaged or incomplete barcodes.
Outfitted with a rugged housing and IP67 rated sealing, the EDA5S can operate under rough usage and demanding environmental conditions. A 3060mAh battery provides 8 hours of power without interruption. The battery is also easily removable and supports quick charge 3.0.
The EDA5S (WWAN version) supports one nano SIM and one eSIM simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards.
The EDA5S is built on Android 11 and upgradable to Android 13, reducing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended), a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs.
Viktiga egenskaper
Honeywell ScanPal EDA5S + kit (USB). Display diagonal: 14 cm (5.5"), Display resolution: 1440 x 720 pixels, Touch technology: Multi-touch. Internal memory: 6 GB, Flash memory: 128 GB, Compatible memory cards: MicroSD (TransFlash). Processor frequency: 2 GHz, Processor manufacturer: Qualcomm, Processor family: Snapdragon, Processor model: 662. Operating system installed: Android 11. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Barcode reader
Teknisk specifikation
Display
| Display diagonal | 5.5 " |
|---|
| Display resolution | 1440 x 720 pixels |
|---|
| Display | LED |
|---|
| Touchscreen | Yes |
|---|
| Touchscreen type | Capacitive |
|---|
| Touch technology | Multi-touch |
|---|
| Display glass type | Gorilla Glass |
|---|
| Gorilla Glass version | Gorilla Glass 5 |
|---|
Memory
| Internal memory | 6 GB |
|---|
| Flash memory | 128 GB |
|---|
| Compatible memory cards | MicroSD (TransFlash) |
|---|
| Maximum memory card size | 128 GB |
|---|
Processor
| Processor frequency | 2 GHz |
|---|
| Processor family | Snapdragon |
|---|
| Processor model | 662 |
|---|
| Processor manufacturer | Qualcomm |
|---|
| Number of cores | 8 |
|---|
| Performance cores | 4 |
|---|
| Efficient cores | 4 |
|---|
Network
| Wi-Fi | Yes |
|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.1 |
|---|
| Data network | EDGE,HSPA+,LTE,UMTS |
|---|
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11e,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11k,IEEE 802.11n,IEEE 802.11u,IEEE 802.11v,IEEE 802.11w |
|---|
| Near Field Communication (NFC) | Yes |
|---|
| Security algorithms | EAP,LEAP,PEAP,TLS,TTLS,WEP,WPA,WPA2,WPA3,WPA3-SAE |
|---|
GPS Performance
| GPS (satellite) | Yes |
|---|
| GLONASS | Yes |
|---|
| BeiDou | Yes |
|---|
Camera
| Built-in camera | Yes |
|---|
| Rear camera resolution (numeric) | 13 MP |
|---|
| Front camera | Yes |
|---|
| Front camera resolution (numeric) | 5 MP |
|---|
Ports & interfaces
| Interface | USB 2.0 type-C |
|---|
Performance
| Product colour | Black |
|---|
| Barcode reader | Yes |
|---|
| Scanner type | 1D/2D |
|---|
| Drop proof | Yes |
|---|
| Drop proof | 1200 cm |
|---|
| International Protection (IP) code | IP67 |
|---|
| LED indicators | Yes |
|---|
| Warranty period | 1 year(s) |
|---|
Software
| Operating system installed | Android 11 |
|---|
Power
| Battery capacity | 3060 mAh |
|---|
| Battery type | EDA5S |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery voltage | 3.8 V |
|---|
| Battery recharge time (on) | 3.5 h |
|---|
Weight & dimensions
| Weight | 218 g |
|---|
| Width | 75 mm |
|---|
| Depth | 11.2 mm |
|---|
| Height | 159 mm |
|---|
Operational conditions
| Operating relative humidity (H-H) | 5 - 90 % |
|---|
| Operating temperature (T-T) | -10 - 50 °C |
|---|
| Storage temperature (T-T) | -20 - 70 °C |
|---|
Packaging content
| Docking station included | Yes |
|---|
