Produktbeskrivning

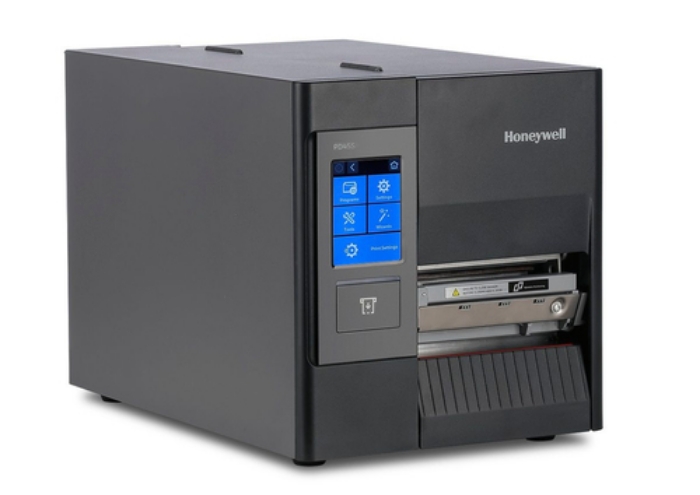

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.
The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell’s patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.
The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.



Viktiga egenskaper

Honeywell PD45S0C. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 250 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Product colour: Black



Teknisk specifikation

Print technology	Direct thermal / Thermal transfer
Colour	No
Maximum resolution	203 x 203 DPI
Print speed	250 mm/sec
Maximum printing width	108 mm
Minimum print length	4800 mm

Ribbon width	110 mm
Ribbon length	450 m
Media thickness	0.224 mm
Maximum roll diameter	80 mm

Connectivity technology	Wired
Ethernet LAN	Yes
USB port	Yes
RS-232 ports	1

Page description languages	IPL,DP,Fingerprint (FP),DPL,XML,ZPL II,ZSim2
Internal memory	128 MB
Flash memory	128 MB
Built-in processor	Yes

Product colour	Black
Built-in display	Yes
Display	LCD
Display diagonal	2.6 "

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operating relative humidity (H-H)	20 - 85 %
Storage relative humidity (H-H)	20 - 85 %
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 70 °C

Width	249 mm
Depth	438 mm
Height	270 mm
Weight	9250 g

Harmonized System (HS) code	84433210
