Produktbeskrivning

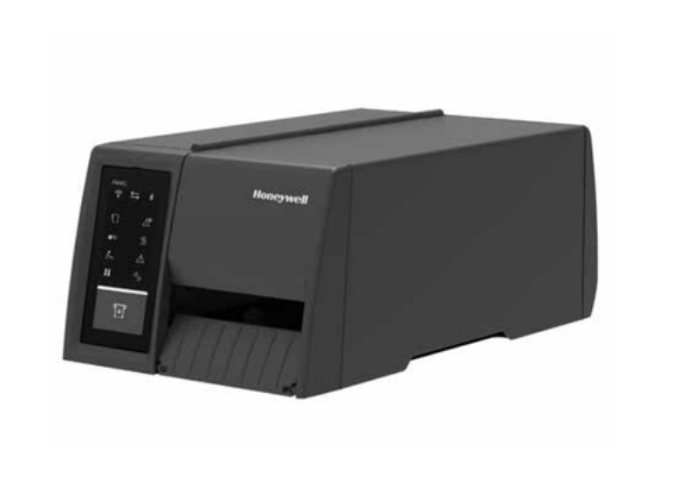

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer’s track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.
As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer’s versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.
Embedded with Honeywell’s Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell’s Operational Intelligence software, users can remotely manage and monitor the PM45 printer’s diagnostics and output performance. The PM45 supports a wide range of media – including ink-in and ink-out ribbons with a 1-inch core size – enhancing the time between media resupplies.
The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell’s firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.



Viktiga egenskaper

Honeywell PM45 Compact. Print technology: Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 350 mm/sec. Connectivity technology: Wired & Wireless, Ethernet LAN, Wi-Fi, Bluetooth, Bluetooth version: 5.0, USB port. Product colour: Black



Teknisk specifikation

Print technology	Thermal transfer
Colour	No
Maximum resolution	203 x 203 DPI
Number of printable dots	8 dot
Print speed	350 mm/sec
Printing colours	Black
Maximum printing width	108 mm

Core diameter	76.2 mm
Maximum roll diameter	213 mm
Maximum label width	114 mm

Connectivity technology	Wired & Wireless
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
USB port	Yes
USB 2.0 ports quantity	2
RS-232 ports	1

Page description languages	DP,DPL,IPL,XML,ZPL II
Internal memory	256 MB
Flash memory	512 MB
Built-in barcodes	1D,2D
Image formats supported	BMP,GIF,PCX,PNG

Product colour	Black
Built-in display	Yes
Display	LCD
Control type	Touch

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mobile operating systems supported	Android,iOS

Operating relative humidity (H-H)	20 - 85 %
Storage relative humidity (H-H)	5 - 90 %
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 70 °C

Width	253 mm
Depth	432 mm
Height	181 mm
Weight	12600 g

Sustainability certificates	ENERGY STAR
Compliance certificates	CE,RoHS
