Produktbeskrivning

The Honeywell PM45 and PM65 series industrial printers are designed for high quality label printing in harsh industrial environments. The WWAN connective printer enables 24/7 data communication and real-time visibility of critical data from a wide range of locations.

Enterprises today are facing increasing production flexibility, inventory turnover, and cost control challenges. The PM45 and PM65 industrial printers offer high-precision and high-volume printing along with remote configuration and diagnostics functionalities that increase production efficiency and supply chain transparency in food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.

Efficiency and reliability of printing operations are essential for successful workflows. Honeywell Printer Edge provides centralized management and real-time monitoring of your printer network and may help reduce printer downtime and improve the speed and accuracy of printer operations. With effortless integration, a user-friendly interface, enhanced security, and a single software toolkit, you can keep your operations running smoothly while helping reduce costs and maximize productivity.

The PM45 and PM65 support printer remote control, so you can see and control the printers from a remote computer and provide real-time diagnosis and technical support. Print Set MC application enables you to quickly connect and configure the printers from your preferred Android or iOS device, and optional Honeywell Operational Intelligence enables the printers with the capability of remote management for issues diagnostics and output performance tracking.

The PM45 printer can deliver print registration of up to +/-0.5 mm, ensuring high print quality of barcodes, texts, and images, even on small electronic component and pharmaceutical labels. The PM45 and PM65 include WWAN connectivity to enable deployment with minimal limitation from site network topology. These printers are also scalable to incorporate RFID, parallel, industrial, and applicator interfaces to address your unpredictable business needs in the future.

The PM45 and PM65 can support a wide range of media – including ink-in and ink-out ribbons with one-inch core size – enhancing the time between media resupply. The PM45 and PM65 printers are easy replacements for existing Honeywell or mixed printers. Rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement, help minimize downtime and maintenance needs.



Viktiga egenskaper

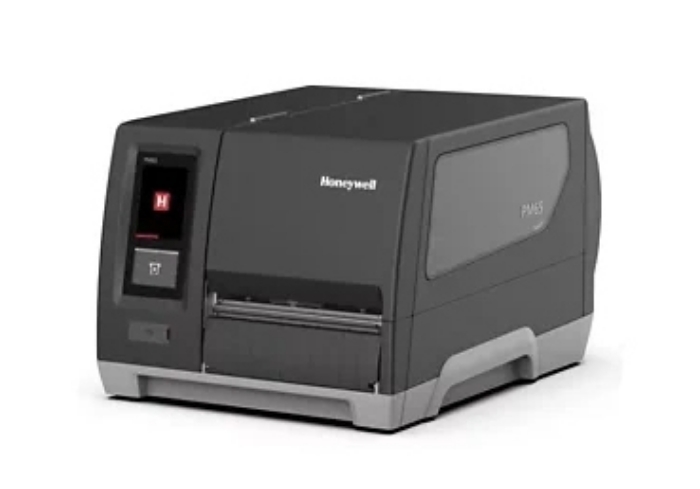

Honeywell PM65. Print technology: Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 300 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Product colour: Black



Teknisk specifikation

Print technology	Thermal transfer
Colour	No
Maximum resolution	203 x 203 DPI
Print speed	300 mm/sec
Maximum printing width	167.4 mm
Minimum print length	4800 mm

Maximum label width	178 mm
Maximum roll diameter	213 mm

Connectivity technology	Wired
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
USB port	Yes
USB 2.0 ports quantity	2
RS-232 ports	1

Page description languages	DPL,IPL,PDF,XML,ZPL II
Internal memory	256 MB
Flash memory	512 MB
Built-in barcodes	1D,2D
Image formats supported	BMP,GIF,PCX,PNG
Certification	RoHS Compliant, CE (EN55032 Class B), FCC Class B, Energy Star 3.0

Product colour	Black
Built-in display	Yes
Display	LCD
Display diagonal	6 "
Control type	Buttons

Power consumption (standby)	9.6 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Linux operating systems supported	Yes
Windows operating systems supported	Yes
Mobile operating systems supported	Android,iOS

Operating relative humidity (H-H)	20 - 85 %
Storage relative humidity (H-H)	5 - 90 %
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 40 °C

Width	350 mm
Depth	484 mm
Height	292 mm
Weight	13700 g
