Produktbeskrivning

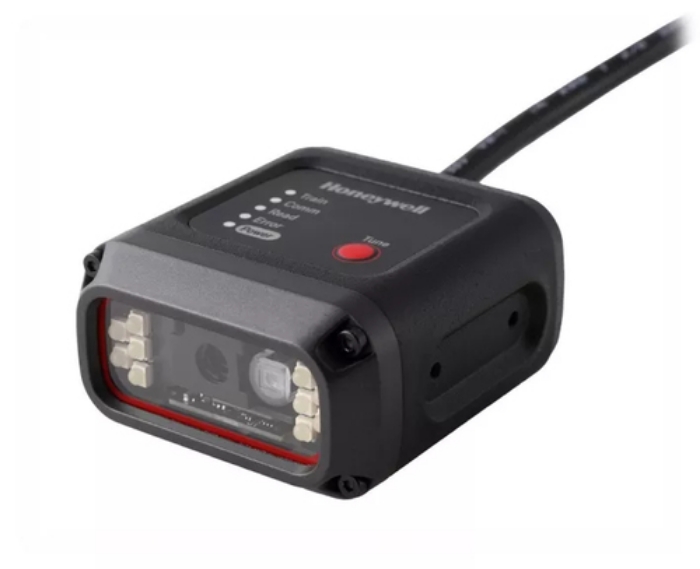

The HF800 combines powerful barcode reading algorithms with industrial hardware design to offer scanning performance with high reliability, and can be networked to yield a complete scanning solution.

With Honeywell's state-of-the-art technology in encodeing and decoding, the HF800 fixed-mount 2D industrial scanner enables a wide array of high-performance scanning applications. Powerful barcode reading algorithm and industrial hardware design contribute to the high decoding efficiency of the HF800. Quick and easy configuration enables optimized reading with one click. Flexible accessory options and software configurations enable high-performance scanning in a wide array of settings and environments in a more economic way.



Viktiga egenskaper

Honeywell HF800. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: RJ-45, RS-232, RS-485, Cable length: 1.5 m. Product colour: Black, Housing material: Zinc, International Protection (IP) code: IP65. Power source type: RS-232, Input voltage: 10 - 30 V. Weight: 210 g, Width: 54.5 mm, Depth: 52.5 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
Sensor type	LED
Linear (1D) barcodes supported	PDF417
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,MaxiCode,QR Code
Optical sensor resolution (W x H)	838 x 640 pixels
Read rate (max)	60 reads/s

Connectivity technology	Wired
Standard interfaces	RJ-45,RS-232,RS-485
Cable length	1.5 m

Product colour	Black
Housing material	Zinc
International Protection (IP) code	IP65
LED indicators	Yes
Buzzer	Yes

Power source type	RS-232
Input voltage	10 - 30 V

Width	54.5 mm
Depth	52.5 mm
Height	29 mm
Weight	210 g

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C

Windows operating systems supported	Windows 10,Windows 7,Windows Vista,Windows XP
