Produktbeskrivning

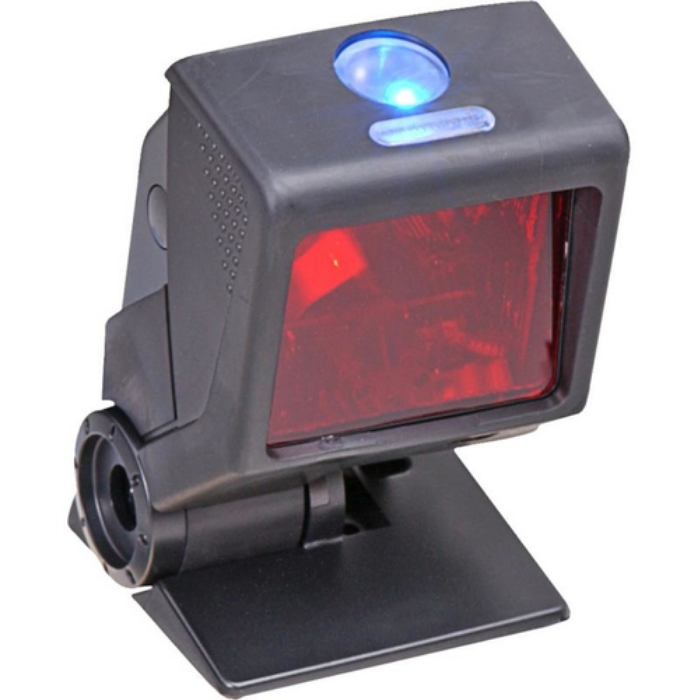

Honeywell’s QuantumT® 3580 provides retailers with industry-leading omnidirectional scan performance and optional single-line scanning in a convenient size. The small footprint and numerous stand options for QuantumT minimize required counter space, increasing available room for merchandise and advertisement displays. Ideal for presentation scanning in moderate-volume retail environments such as convenience stores, liquor stores and pharmacies, end users can individually customize the scan pattern and operate the scanner in either a hand-held or hands-free fashion. In addition, its rugged, rubber housing provides the necessary protection against daily operational use.



Viktiga egenskaper

Honeywell QuantumT 3580. Type: Fixed bar code reader, Scanner type: 1D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: RS-232, Cable length: 2.1 m. Product colour: Black, LED indicators: Power, Certification: FCC Part 15, class B, ROHS, CE UL. Power source type: DC, Power consumption (typical): 1.4 W, Input voltage: 5 V. Weight: 170 g, Width: 67 mm, Depth: 66 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D
2D (matrix & stacked) barcodes supported	Not supported
Sensor type	Laser
Linear (1D) barcodes supported	GS1 DataBar Expanded
Read rate (max)	1650 reads/s
Light levels (direct sunlight)	0 - 4842 lx
Wavelength	650 nm
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Yaw reading angle	0 - 60 °
Maximum scan width	279 mm

Connectivity technology	Wired
Standard interfaces	RS-232
Cable length	2.1 m

Product colour	Black
LED indicators	Power
Certification	FCC Part 15, class B, ROHS, CE UL

Power source type	DC
Power consumption (typical)	1.4 W
Input voltage	5 V
Power consumption	275 mA

Width	67 mm
Depth	66 mm
Height	108 mm
Weight	170 g
