Produktbeskrivning

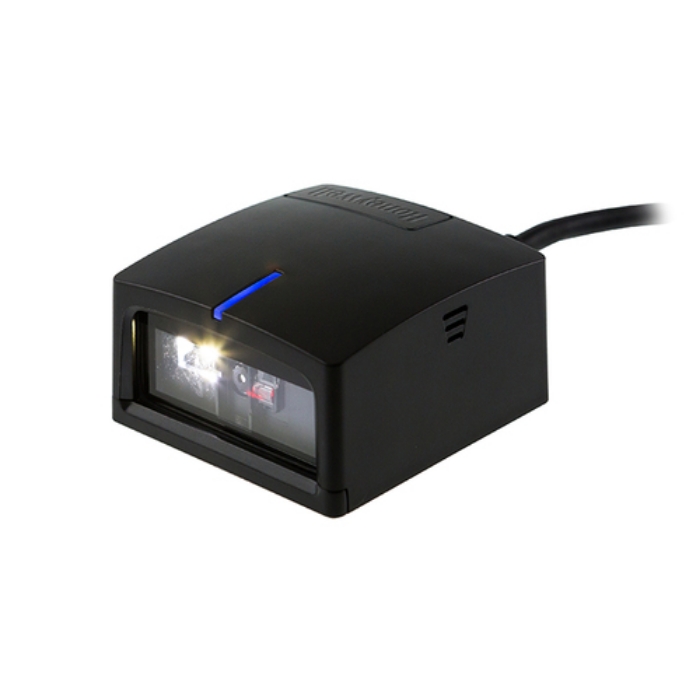

With compact size, excellent performance and high portability, the new Honeywell compact imaging scanner Youjie HF500 demonstrates strong scanning capability for all one-dimensional, PDF and 2D bar codes. Youje HF500, with a highly compact shape, can be embedded into a variety of self-service equipment, such as the kiosks, the ticket machines, and the vending machines.
Viktiga egenskaper
Honeywell HF500. Type: Barcode module bar barcode readers, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB, RS-232. Product colour: Black. Power source type: AC, Power consumption (typical): 2.25 W, Power consumption (standby): 1.25 W. Weight: 50 g, Width: 49 mm, Depth: 52.3 mm
Teknisk specifikation
Scanning
| Type | Barcode module bar barcode readers |
|---|
| Scanner type | 1D/2D |
|---|
| 2D (matrix & stacked) barcodes supported | QR Code |
|---|
| Sensor type | LED |
|---|
| Linear (1D) barcodes supported | Code 39 |
|---|
| Wavelength | 617 nm |
|---|
| Pitch reading angle | 0 - 360 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Standard interfaces | USB,RS-232 |
|---|
Performance
| Product colour | Black |
|---|
Power
| Power source type | AC |
|---|
| Power consumption (typical) | 2.25 W |
|---|
| Power consumption (standby) | 1.25 W |
|---|
| Input voltage | 5 V |
|---|
| Power consumption | 450 mA |
|---|
Weight & dimensions
| Width | 49 mm |
|---|
| Depth | 52.3 mm |
|---|
| Height | 29 mm |
|---|
| Weight | 50 g |
|---|
Operational conditions
| Storage temperature (T-T) | -40 - 60 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Operating temperature (T-T) | -10 - 40 °C |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
