Produktbeskrivning

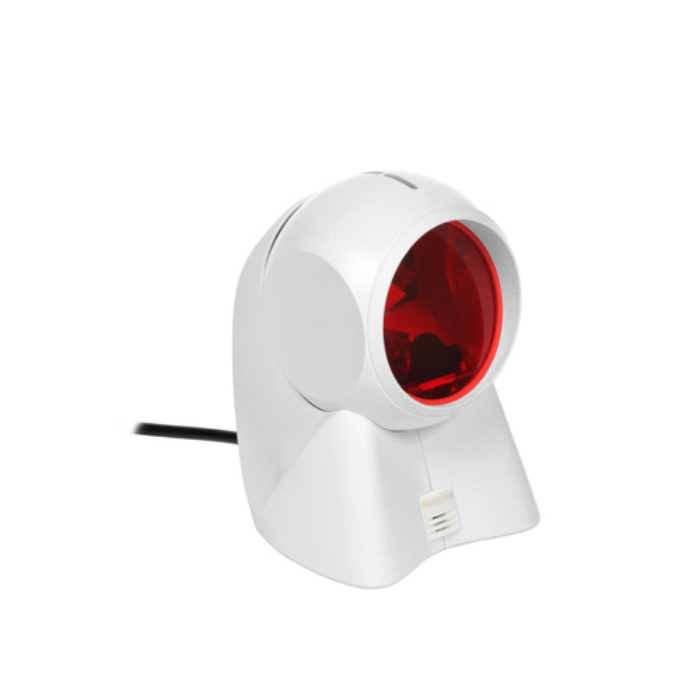

The Orbit 7190g scanner continues the proven, superior 1D laser scanning performance of Orbit series scanners – but adds an area imager for seamless scanning of digital 1D, 2D and PDF codes in a single, convenient device. To speed retail checkouts, the Orbit 7190g scanner features a unique dual-modes design that is optimized for both the cashier and the customer – enabling seamless product barcode scanning and scanning of digital codes off customer smartphones.

Breakthrough Hybrid Technology
The Orbit 7190g scanner integrates both a laser and an imager into a single presentation scanner – no need to buy a separate scanner for printed 1D and digital 1D, 2D and PDF barcodes reading.

Dual-Working Modes
With dual-working modes, the scanner is optimized for both scanning digital codes off customer smartphones and scanning merchandise codes by the cashier at the register.

Superior Scanning Performance
A 20-line omnidirectional laser pattern maintains the proven 1D scanning performance of existing Orbit scanners. With leading Honeywell imaging technology, the scanner reads smartphone coupons and ID cards with ease.

Adjustable Scan Head
The award-winning shape enables handheld scanning of large, bulky items. The adjustable scan head even allows cashiers to tilt the scanner 30° for targeted scanning of larger products.

Multi-Interface Design
Automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection – eliminating the tedious task of scanning programming barcodes.



Viktiga egenskaper

Honeywell Orbit 7190g. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, RS-485, USB. Product colour: White, LED indicators: Status, Certification: CE, RoHS. Power source type: DC, Input voltage: 5 V, Power consumption: 472 mA. Weight: 410 g, Width: 108 mm, Depth: 103 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	Code 39,GS1 DataBar Omnidirectional,U.P.C.
2D (matrix & stacked) barcodes supported	Data Matrix,PDF417,QR Code
Sensor type	Laser
Working distance	327 mm
Read rate (max)	1120 reads/s
Light levels (direct sunlight)	4842 - 100000 lx
Pitch reading angle	0 - 60 °
Yaw reading angle	0 - 70 °

Connectivity technology	Wired
Standard interfaces	Keyboard wedge,RS-232,RS-485,USB

Product colour	White
LED indicators	Status
Built-in display	No
Certification	CE, RoHS

Power source type	DC
Input voltage	5 V
Power consumption	472 mA

Width	108 mm
Depth	103 mm
Height	148 mm
Weight	410 g

Cables included	USB

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	5 - 95 %

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
