Produktbeskrivning

2D bar codes are becoming increasingly popular across a wide range of industries for a number of reasons. Some enterprises have a desire to capture large amounts of data, despite space constraints, while others are being required to read 2D bar codes due to government regulations or supplier mandates. And an even larger group of enterprises simply have the desire to leverage emerging trends that require area-imaging technology, today or in the future, without needing to purchase additional scanning hardware.
Enterprises that recognize the importance of upgrading to area-imaging scanners are generally unwilling to accept a decline in scan performance. They are also looking for a solution that is capable of reading traditional paper-based bar codes, as well as bar codes found on alternative mediums, such as mobile phone screens.

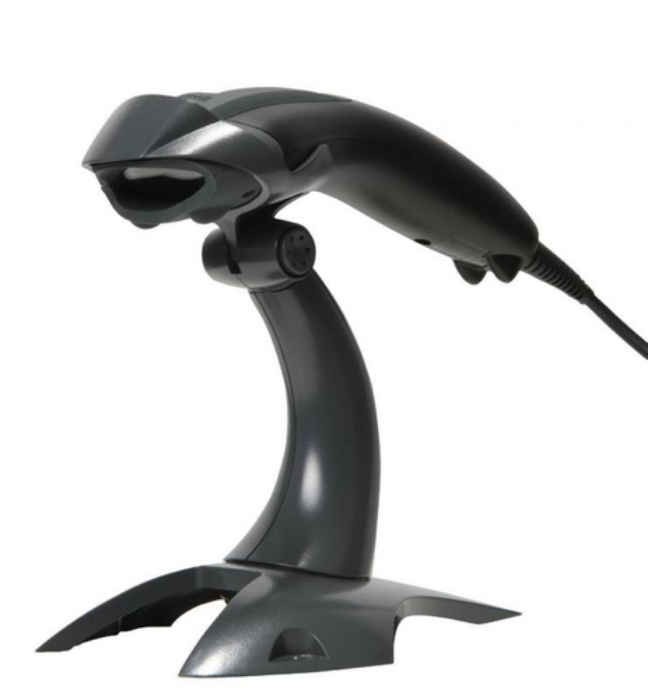

Built on the platform of Honeywell’s world-renowned Voyager series of hand-held linear scanners, the Voyager 1400g delivers omnidirectional reading of linear bar codes, plus the ability to affordably upgrade the device to enable PDF and 2D bar code scanning—at the time of purchase or as scanning needs evolve. Performing at speeds that are comparable to laser-based scanners, the versatile and reliable Voyager 1400g can be customized to meet current and future scanning needs, lowering the total cost of ownership.
With no need for additional functionality beyond linear and 2D bar code scanning, many enterprises are unwilling to pay for fully-featured area-imaging scanners. The Voyager 1400g enables PDF and 2D bar code scanning without extra value-added features, such as advanced image capture and processing applications, allowing Honeywell to offer 2D scanning at an attractive price.
The Voyager 1400g offers an exceptional value for enterprises that require the versatility of area-imaging technology today or may need it in the future. Produced by a company with more than 15 years of experience in engineering quality area-imaging solutions, Honeywell’s Voyager 1400g area-imaging scanner is a smart investment.



Viktiga egenskaper

Honeywell Voyager 1400g. Type: Handheld bar code reader, Scanner type: 1D/2D, Light levels (direct sunlight): 0 - 100000 lx. Connectivity technology: Wired, Standard interfaces: USB, RS-232, RS-485, Keyboard wedge. Product colour: Black, International Protection (IP) code: IP42. Power consumption (typical): 2 W, Power consumption (standby): 0.45 W, Input voltage: 4/5.5 V. Weight: 119 g, Width: 180 mm, Depth: 43 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 100000 lx
Pitch reading angle	-60 - 60 °
Motion tolerance (cm/s)	10

Connectivity technology	Wired
Standard interfaces	USB,RS-232,RS-485,Keyboard wedge

Product colour	Black
International Protection (IP) code	IP42

Power consumption (typical)	2 W
Power consumption (standby)	0.45 W
Input voltage	4/5.5 V

Width	180 mm
Depth	43 mm
Height	66 mm
Weight	119 g

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95 %

Harmonized System (HS) code	84716070
