Produktbeskrivning

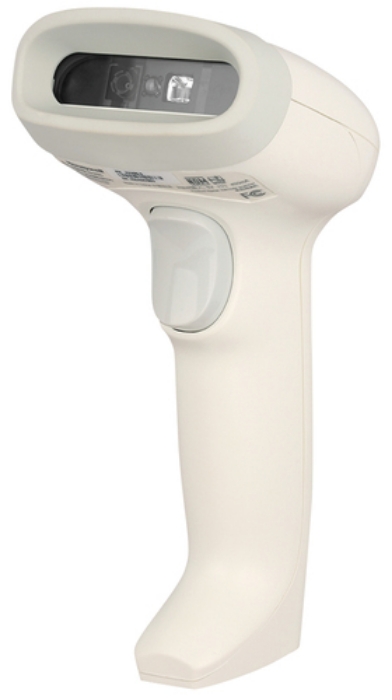

Voyager 1350g is featuring an ideal balance of performance, ergonomics and price, It is a cost-effective solution for a wide variety of data capture applications. Voyager 1350G can be used in government departments for personnel registration, hotel registrations, theater ticket checking, and even hospitals and schools that need a quick and fast scan, for hospitality and admission purposes.
Voyager 1350g supports all popular 1D and 2D barcodes, as well as image capture capability. Incorporating latest technology from Honeywell, Voyager 1350G is easy to install and configure, the user being able to quickly select configurations and personalize the scanning experience. Voyager 1350G is compatible with Honeywell’s advanced EZConfig and support all common POS drivers, being ready to adapt to different applications and requirements.
Viktiga egenskaper
Honeywell Voyager 1350g. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: White, International Protection (IP) code: IP40, Protection features: Drop proof. Power source type: RS-232, USB, Power consumption (typical): 2 W, Power consumption (standby): 0.55 W. Weight: 130 g, Width: 125 mm, Depth: 72.5 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| Sensor type | LED |
|---|
| 2D (matrix & stacked) barcodes supported | Code 39,Data Matrix,PDF417,QR Code |
|---|
| Linear (1D) barcodes supported | Code 39,UPC-A |
|---|
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
|---|
| Working distance | 430 mm |
|---|
| Read rate (max) | 75 reads/s |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
| Tilt reading angle | -180 - 180 ° |
|---|
| Pitch reading angle | -60 - 60 ° |
|---|
| Yaw reading angle | -65 - 65 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Standard interfaces | RS-232,USB |
|---|
Performance
| Product colour | White |
|---|
| International Protection (IP) code | IP40 |
|---|
| Protection features | Drop proof |
|---|
| Print contrast | 25 % |
|---|
Power
| Power source type | RS-232,USB |
|---|
| Power consumption (typical) | 2 W |
|---|
| Power consumption (standby) | 0.55 W |
|---|
| Input voltage | 5 V |
|---|
Weight & dimensions
| Width | 125 mm |
|---|
| Depth | 72.5 mm |
|---|
| Height | 154 mm |
|---|
| Weight | 130 g |
|---|
Operational conditions
| Storage temperature (T-T) | -40 - 60 °C |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
