Produktbeskrivning

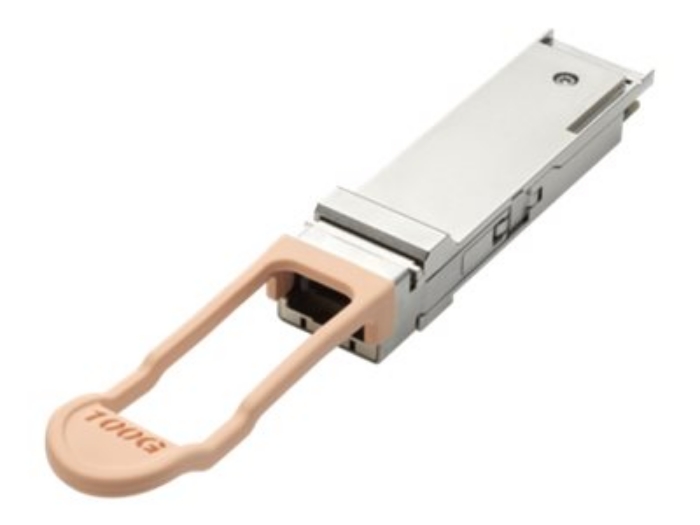

The HPE 100Gb QSFP28 transceiver is designed to meet the increasing demand of growing bandwidth in the data center. The 100 Gb performance allows a reduction of the port density and number of hardware components required to achieve this higher speed. With reduction of cost per bit, the HPE 100Gb QSFP28 transceiver can significantly reduce Capex and Opex spending on interconnect connections. When the fiber optic cable is attached via a standard MPO connector, up to 100 m connection can be conducted via multi-mode fibers.



Egenskaper

● Four optical lanes in each direction, allowing each to operate at 25 Gb
● MPO connector for plugging in multi-mode fiber cables
● Maximum link length of 70 m on OM3 and 100 m on OM4 multimode fiber at 100 Gb/s
● Bit-error Rate (BER) lower than 10-15
● 3.3 V power supply



Teknisk specifikation

Typ av enhet	QSFP28 sändar-/mottagarmodul
Formfaktor	Insticksmodul

Anslutningsteknik	Kabelansluten
Typ av kablage	100GBase-SR4
Datalänkprotokoll	100GbE
Dataöverföringshastighet	100 Gbps
Optisk våglängd	850 nm
Max överföringsavstånd	100 m

Gränssnitt	1 x Ethernet 100GBase-SR4 - MPO multi-mode

Standarder som följs	OM4, OM3

Bredd	1.835 cm
Djup	7.27 cm
Höjd	0.85 cm
Vikt	36 g

Min temperatur vid drift	0 °C
Max temperatur vid drift	70 °C
Luftfuktighet vid drift	0 - 85 % (icke-kondenserande)

Designat för	HPE 842QSFP28
