Produktbeskrivning

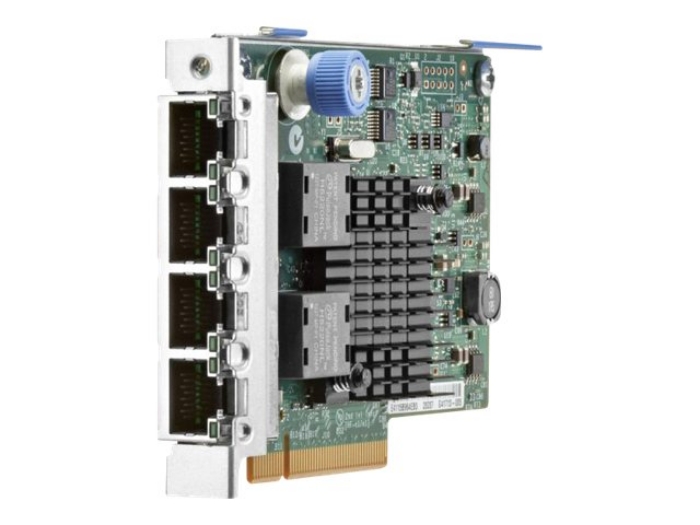

The HPE Ethernet 1Gb 4-port 366FLR features the next generation of Ethernet integration offering in a single chip solution on a FlexibleLOM form factor, further reducing power requirements for 4 ports of 1Gb Ethernet. The HPE 366FLR is the PCI Express 2.1 x4 based on the latest Intel Ethernet Controller I350 designed for use with select HPE ProLiant Gen8 rack and scalable servers.

Its FlexibleLOM form factor means customer now have choice to meet growing infrastructure needs. The HPE 366FLR adapter supports advanced features such as Large Send offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, Jumbo frames, IEEE 1588, and virtualization features such as Intel Virtualization Technology for Connectivity, VMware NetQueue, Microsoft VMQ and WOL, and power management technologies like Energy Efficient Ethernet.



Egenskaper

● 4-port 1Gb Ethernet PCIe Gen 2.1, x4 lane adapter designed for maximum network performance
● I/O technologies reduce system power, increases I/O performance and reduces I/O latency
● Supports Precision Time Stamping protocol ( IEEE 1588 and 802.1AS)
● Supports Wake-on-LAN (WOL) at 1Gb, has PXE , MSI-X support, Teaming, IPv6
● Adapter supports HPE Sea of Sensors 3D technology



Teknisk specifikation

Typ av enhet	Nätverksadapter
Gränssnittstyp (buss)	PCI Express 2.1 x4

Portar	Gigabit Ethernet x 4
Anslutningsteknik	Kabelansluten
Typ av kablage	Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Datalänkprotokoll	Ethernet, Fast Ethernet, Gigabit Ethernet
Dataöverföringshastighet	1 Gbps
Protokoll för administration på distans	SNMP
Statusindikatorer	Portöverföringshastighet, länk/akvititet
Funktioner	Jumbo Frames-support, PXE-support, Large Send Offload (LSO)
Standarder som följs	IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az

Processor	1 x Intel I350

Gränssnitt	4 x 1000Base-T - RJ-45
Kompatibla kortplatser	1 x FlexibleLOM

Standarder som följs	UL, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 klass A, RoHS, FCC Part 15 A, ICES, VCCI V-3 Class A ITE

Operativsystem erfordras

SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Storage Server 2008 Embedded, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Small Business Server 2011 Essentials, Oracle Solaris 10, Microsoft Windows Small Business Server 2011, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, Microsoft Windows Server 2012

Djup	11.75 cm
Höjd	7.62 cm

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)

Designat för

HPE Apollo 4200 Gen9 for Google HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL385 Gen10, DL385 Gen10 Base, DL385 Gen10 Entry, DL385 Gen10 High-Performance, DL385 Gen10 Performance, DL385 Gen10 SMB, DL385 Gen10 Solution, DL388 Gen10 Network Choice, DL388p Gen8 Base, DL560 Gen10 Base, DL560 Gen10 for SAP HANA Compute Block, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, DX170r Gen10, DX380 Gen10, DX560 Gen10, XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL270d Gen10, XL270d Gen10 for HPE Ezmeral Container Platform, XL450 Gen10 HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node
