Produktbeskrivning

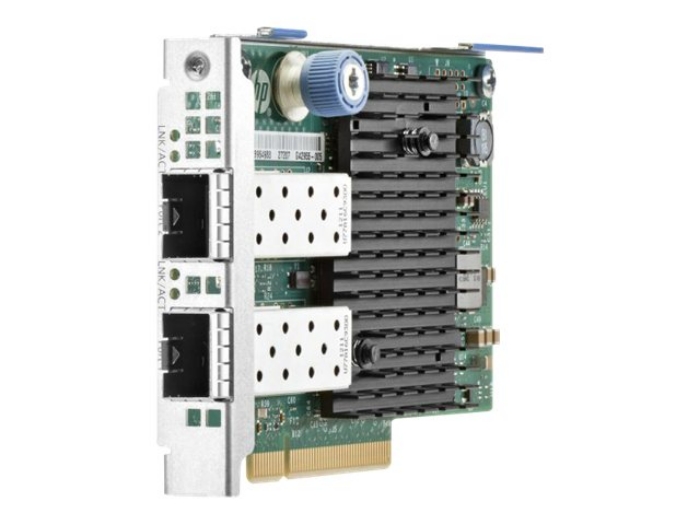

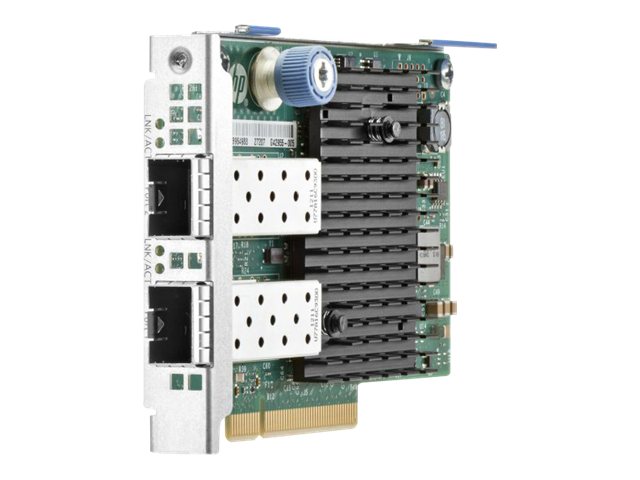

The HPE Ethernet 10Gb 2-port 560FLR-SFP+ adapter, featuring the next generation of 10Gb Ethernet integration offering a single chip solution on a FlexibleLOM form factor, further reducing power requirements for 2 ports of 10Gb Ethernet. It is designed for use with HPE ProLiant Gen8 Rack and Scale-Out servers.



Egenskaper

Dual-port 10 Gigabit Ethernet throughput
The HPE 560FLR FlexibleLOM delivers 20 Gb/s full duplex Ethernet transfer rate per port (40 Gb/s aggregate full duplex).
Jumbo frames
Permits up to a 9.5K byte (KB) transmission unit (MTU) when running Ethernet I/O traffic.
802.1Q VLANs
Allows each physical port of the HPE 560FLR FlexibleLOM to be separated into multiple virtual NICs for added network segmentation and enhanced security and performance.
Increase security by isolating traffic between users.
Optimized for virtualization
I/O Virtualization support for VMware NetQueue and Microsoft VMQ help meet the performance demands of consolidated virtual workloads. Compliant with Single-Root I/O Virtualization (SR-IOV), accommodating multiple Virtual Machines (VMs) to share single PCIe resources. Device is capable of SR-IOV, and requires Firmware, Software and OS support.
MSI and MSI-X
MSI and MSI-X Message Signaled Interrupt (Extended) provides performance benefits for multi-core servers by balancing interrupts between CPUs/cores load.
TCP/IP stateless offloading
TCP, IP, UDP checksum offload, Large Send Offload (LSO), TCP, Segmentation Offload (TSO). These features optimize host efficiency, leaving the CPU available for other duties.
FlexibleLOM slot compatibility
Compatible with HPE FlexibleLOM slot for select HPE ProLiant Gen8 Rack and Scale-Out servers.
Network adapter teaming
The HPE 560FLR FlexibleLOM support for NIC teaming helps IT administrators increase network fault tolerance and increased network bandwidth. The team of adapters can work together as a single virtual adapter. The HPE 560FLR provides support for several different types of teaming enabling IT administrators to optimize availability and improve performance.



Teknisk specifikation

Typ av enhet	Nätverksadapter
Formfaktor	Instickskort
Gränssnittstyp (buss)	PCI Express 2.0 x8

Portar	10Gb Ethernet x 2
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	10 Gigabit Ethernet
Dataöverföringshastighet	10 Gbps
Protokoll för administration på distans	SNMP
Statusindikatorer	Portstatus, länk/akvititet
Funktioner	Wake on LAN (WOL), Jumbo Frames-support, teamingssupport, PXE-support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO)
Standarder som följs	IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qau

Processor	1 x Intel

Gränssnitt	2 x 10Gb Ethernet
Kompatibla kortplatser	1 x FlexibleLOM

Standarder som följs	UL, BSMI, BSMI CNS 13438 Class A, ICES-003, EN55024, EN55022 klass A, WEEE, FCC Part 15 A, VCCI V-3 Class A ITE, EN 61000-3-2:2006, EN 61000-3-3:2008

Operativsystem erfordras	SunSoft Solaris 10, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Microsoft Windows HPC Server 2008, Red Hat Enterprise Linux 6, Microsoft Windows Server 2008 (32/64-bits), Red Hat Enterprise Linux 5.x, VMware ESXi 4.1, VMware ESXi 5, VMware ESX, Microsoft Windows Server 2008 R2 (32/64-bitars), Microsoft Windows Server 2012 (32/64-bitars)

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)

Designat för

HPE Apollo 4200 Gen9 for Google, 4520 Gen9 HPE ProLiant DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Special Server, DL380 Gen9 High Performance, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL388p Gen8 Base, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U PCIe Gen3 Right Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Left Tray Server, SL250s Gen8 Base 2U Right Half Width Tray, SL250s Gen8 Base 2U Right Tray Server, SL270s Gen8 1U Left Half Width Tray, SL270s Gen8 1U Right Half Width Tray, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray, XL170r Gen9, XL190r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G) HPE SimpliVity 380 Gen9 Node HPE StoreEasy 1850, 3850 Gateway Single Node
