Produktbeskrivning

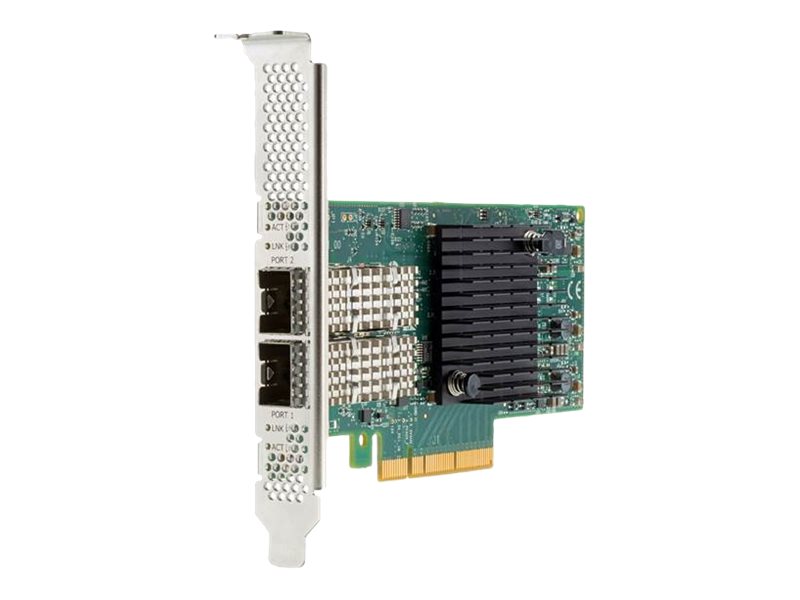

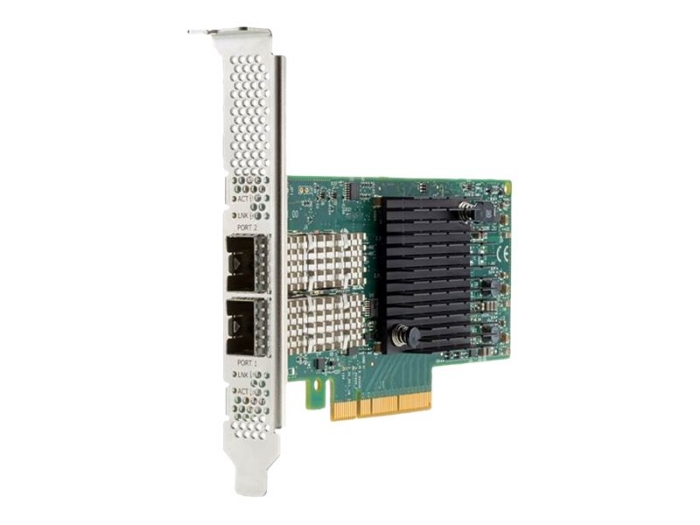

The HPE Ethernet 10/25 Gb 2-port 640SFP28 adapter for ProLiant Gen9 rack servers are designed to optimize Cloud efficiency, and improve performance and security of applications – especially where I/O, block storage and database performance are critical and the need for maximum VM density and up-scalability are greatest.

The HPE Ethernet 640SFP28 can provide up to 100 Gbps of converged bi-directional Ethernet bandwidth, helping to alleviate network bottlenecks. This adapter can also run at 10 Gb for customers who have not changed the infrastructure/switches to 25 Gb yet.



Egenskaper

● Dual 10/25 Gb ports provide up to 100 Gb bi-directional per adapter
● Converges RoCE with LAN traffic on a single 10/25 GbE wire
● Tunnel Offload support for VXLAN and NVGRE
● RDMA over Converged Ethernet (RoCE) for greater server efficiency and lower latency
● Supports UEFI and legacy boot options
● Industry-leading throughput and latency performance
● Over eight million small packets/s, ideal for web/mobile applications, mobile messaging, and social media
● Greater bandwidth with PCIe 3.0
● Jumbo Frames support
● Active Health Systems support
● Support for Preboot eXecution Environment (PXE)
● Supports receive-side scaling (RSS) for the efficient distribution of network receive processing across multiple CPUs in multiprocessor systems



Teknisk specifikation

Typ av enhet	Nätverksadapter
Formfaktor	Instickskort - låg profil
Gränssnittstyp (buss)	PCI Express 3.0 x8 / PCI Express 3.0 x4
Version av PCI-specifikation	PCIe 3.0

Portar	25 Gigabit Ethernet x 2
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	10 Gigabit Ethernet, 25 Gigabit Ethernet
Dataöverföringshastighet	25 Gbps
Prestanda	Genomströmning i två riktningar: 100 Gbps Bandbredd per port: 50 Gbps
Kapacitet	Jumboramstorlek: upp till 9,6 KB
Protokoll för administration på distans	SNMP
Statusindikatorer	Länk/akvititet
Funktioner	VLAN-stöd, stöd för IPv6, fullt duplexläge, TCP/IP-avlastning, Quality of Service (QoS), Jumbo Frames-support, IPv4-support, PXE-support, LACP-support, LLDP-support, Large Send Offload (LSO), Receive Side Scaling (RSS), UEFI-support, TCP Segmentation Offload (TSO), QoS-märkning, Extended Message-Signaled Interrupts (MSI-X), UDP/IP-offloading, TCP/IP-checksummeavlastning, RDMA over Converged Ethernet (RoCE), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2
Standarder som följs	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2

Processor	1 x Mellanox Technologies Mellanox ConnectX-4 Lx

Gränssnitt	2 x 25Gb Ethernet - SFP28

Standarder som följs	FCC klass A-certifierad, CISPR 22 klass A, ICES-003, EN55024, EN 60950-1, RoHS, ACA, cTUVus, BSMI Class A, VCCI Class A, EN 55022 Class A

Energiförbrukning vid drift	9.7 Watt

Operativsystem erfordras	SuSE Linux Enterprise Server 11, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, VMware ESXi 5.5, Ubuntu 14.04, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 7.1, Citrix XenServer 6.5, SuSE Linux Enterprise Server 12, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 7.2, VMware ESXi 6.0

Service och support	Begränsad garanti - 1 år

Min temperatur vid drift	5 °C
Max temperatur vid drift	60 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)

Designat för

HPE Apollo 20 2U Node, 4200 Gen10, 4200 Gen10 336TB Archive Node with 25Gb NIC for Qumulo, 4200 Gen10 for HPE Ezmeral Container Platform, 4200 Gen10 for HPE Ezmeral Tracking, 4200 Gen10 Qumulo Archive Node, 4200 Gen10 Qumulo Hybrid Node, 4200 Gen9 for Google HPE Edgeline e920, e920d HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 HPE ProLiant DL180 Gen10 Entry, DL180 Gen10 SMB, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL360 Gen9 High Performance, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10 for SAP HANA Compute Block, DL580 Gen9 SAP HANA Scale-out Base Configuration, DL580 Gen9 SAP HANA Scale-up Base Configuration, DX380 Gen10, DX560 Gen10, ML350 Gen10 High Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10 for HPE Ezmeral Container Platform, XL270d Gen10 for HPE Ezmeral Container Platform, XL450 Gen10 HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node HPE StoreEasy 1660 Expanded Storage
