Produktbeskrivning

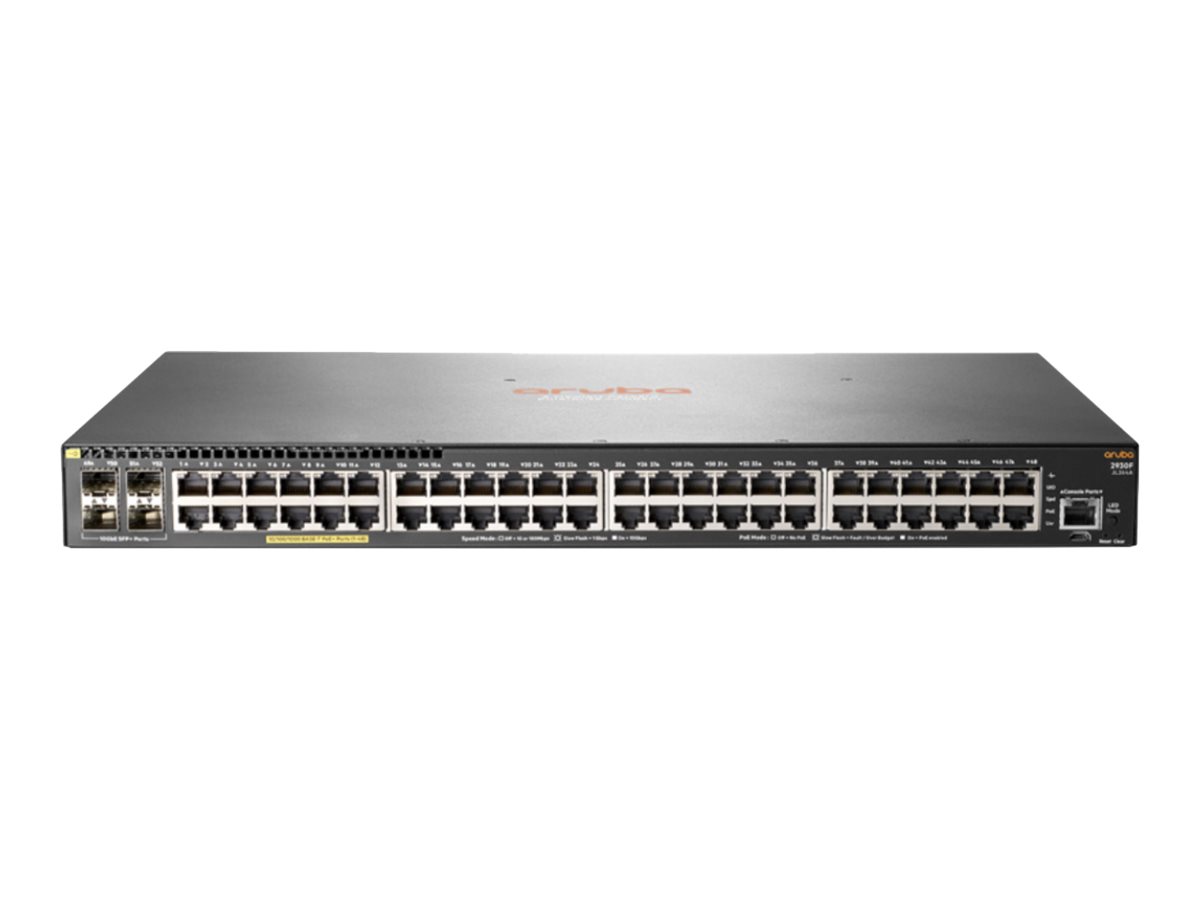

The Aruba 2930F Switch series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices.

A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. It supports 10GbE uplinks, PoE+, robust QoS, and RIP routing.



Egenskaper

High-performance access layer switches
The Aruba 2930F Switch series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks. Delivers a consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment. Convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance. Robust basic Layer 3 feature set includes static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required. Designed with a powerful ProVision ASIC and support for OpenFlow, the Aruba 2930F is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Software products.

Performance and power at the edge
The Aruba 2930F Switch series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption. Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements. Supports up to 370 W of internal PoE+ power for wireless access points, cameras and phones.

Security and quality of service you can rely on
The Aruba 2930F Switch series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks. Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication. Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

Simplify with integrated wired/wireless management
The Aruba 2930F Switch series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies. Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices. RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events. Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.



Teknisk specifikation

Typ av enhet	Switch - 48 portar - L3 - Administrerad - staplingsbar
Modell	Rackmonterbar 1U
Undertyp	Gigabit Ethernet
Portar	48 x 10/100/1000 (PoE+) + 4 x 1 gigabit/10 gigabit SFP+ (upplänk)
PoE (Power Over Ethernet)	PoE+
PoE-budget	370 W
Prestanda	Kapacitet: 112 Mpps Växlingskapacitet: 176 Gbps Latens (1 Gbps): 3.8 µs Latens (10 Gbps): 1.6 µs
Kapacitet	Jumboramstorlek: 9220 IPv4-routingtabellposter: 10000 IPv6-routingtabellposter: 5000
MAC Address Table Size	32K poster
Nätverksprotokoll	OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, statisk IP-routing, IGMPv3, OSPFv3, statisk IPv4-routing, statisk IPv6-routing, RIPng, MLD, CIDR
Protokoll för administration på distans	SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Krypteringsalgoritm	MD5, SSL
Verifieringsmetod	RADIUS, PAP, CHAP, TACACS, TACACS+
Funktioner	Flödeskontroll, full duplex, DHCP-stöd, BOOTP-stöd, ARP-stöd, VLAN-stöd, IGMP snooping, Syslog-stöd, Stöd för DiffServ, stöd för IPv6, SNTP-support, sFlow, stöd för STP (Spanning Tree Protocol), stöd för MSTP (Multiple Spanning Tree Protocol), stöd för ACL (Access Control List), Quality of Service (QoS), Jumbo Frames-support, DHCP-server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP-support, LACP (Link Aggregation Control Protocol), Management Information Base (MIB), MAC-adressutlåsning, dynamiskt ARP-skydd, DHCP-swkydd, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow-support, CPU-skydd, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Standarder som följs	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor	1 x ARM Cortex-A9: 1.016 GHz
RAM	1 GB DDR3 SDRAM
Flash-minne	4 GB

Gränssnitt	48 x 1000Base-T RJ-45 PoE+ 4 x Gigabit / 10Gbit LAN SFP+ 1 x seriell (konsol)
Expansionskortplatser	1 (totalt)/ 1 (ledig) x expansionskortplats
Antal installerade enheter / moduler (max)	0 (installerad) / 4 (max)

Nätdel	Intern strömförsörjning
Installerat antal	1
Nätspänning	AC 120/230 V
80 PLUS-certifiering	80 PLUS Silver

Standarder som följs	CISPR 22 klass A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 klass A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
TAA-kompatibel	Ja
Lokalisering	Engelska / Europa

Medföljande programvara	Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center

Bredd	44.25 cm
Djup	30.42 cm
Höjd	4.39 cm
Vikt	4.46 kg

Service och support	Begränsad garanti - livstid

Min temperatur vid drift	0 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	15 - 95 % (icke-kondenserande)
Min temperatur vid förvaring	-40 °C
Max temperatur vid förvaring	70 °C
Luftfuktighet vid lagring	15 - 90 % (icke-kondenserande)
