Produktbeskrivning

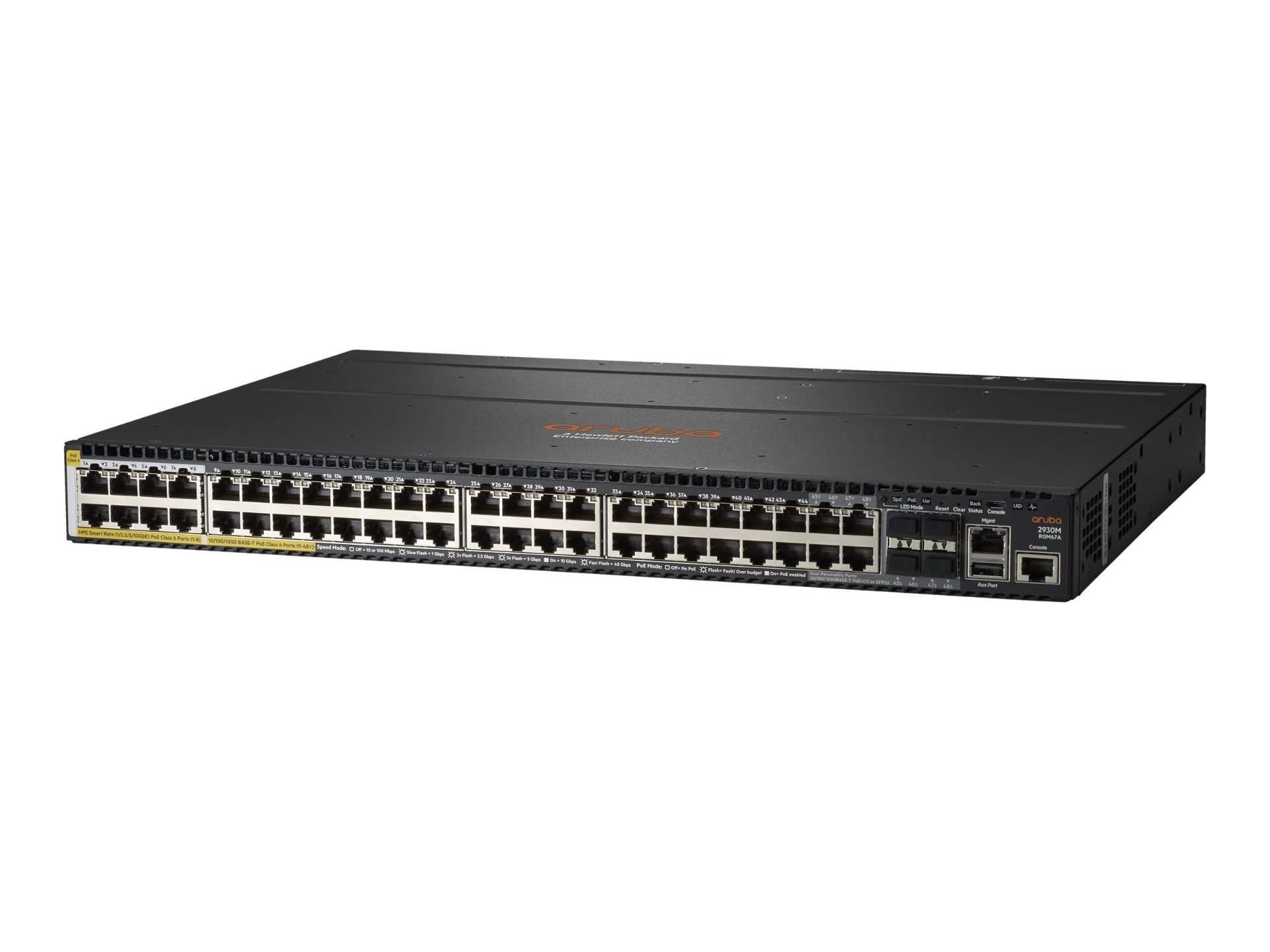

The Aruba 2930M Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks. The 2930M delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.



Egenskaper

High-performance layer 3 access switches
The Aruba 2930M Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks. Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment. Pay as you grow modular stacking (10 chassis) and modular 10GbE (SFP+) and 40GbE (QSFP+) uplinks. HPE Smart Rate multi-gigabit Ethernet models support high speed APs over existing cabling and upgradeable power supplies allow your network to quickly scale when more PoE is needed. Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, Dynamic Segmentation, sFlow, IPv6 with no software licensing required. Designed with a power ProVision ASIC, the 2930M supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.

Performance and power at the edge
The Aruba 2930M Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with low latency, increased packet buffering, and adaptive power consumption. Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements. Plug and Play with up to 10 chassis stacking allowing automated failover enhances network resiliency and RPS support delivers power redundancy. Supports hot swappable and redundant PoE power for wireless access points, cameras and phones and can easily scale to 1440W with choice of power supplies. High power PoE models deliver up to 60W of PoE per port.

Security and quality of service you can rely on
The Aruba 2930M Switch Series includes security and quality of services (QoS) features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks. Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication. Powerful multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, port security, and MAC address lockout. Dynamic Segmentation provides user and port-based traffic tunneling to an Aruba Mobility Controller or Branch Gateway so that policies can be applied, advanced services can be extended to users and IoT devices, and traffic can be encrypted to protect the network.

Simplify with integrated wired/wireless management
The Aruba 2930M Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies. Aruba Airwave Network Management software provides an on-premise network management platform for wired and wireless network devices. Cloud-based management with Zero Touch Provisioning supported by Aruba Central. Supports both cloud-based Central and on-premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure. RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events. Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.



Teknisk specifikation

Typ av enhet	Switch - 48 portar - L3 - Administrerad - staplingsbar
Modell	Rackmonterbar 1U
Undertyp	Gigabit Ethernet
Portar	36 x 10/100/1000 + 4 x kombinations-Gigabit SFP + 8 x 1/2.5/5/10GBase-T (PoE Class 6)
PoE (Power Over Ethernet)	PoE Class 6
PoE-budget	1440 W
Prestanda	Latens (1 Gbps): 3.1 µs Latens (2,5 Gbps): 6.5 µs Latens (5 Gbps): 4.2 µs Latens (10 Gbps): 3.4 µs Kapacitet: 112 Mpps Stackningsbandbredd: 100 Gbps Växlingskapacitet: 320 Gbps
Kapacitet	IPv4-routingtabellposter: 2000 IPv6-routingtabellposter: 1000 OSPF-routes: 200 RIP-rutter: 10000 Statiska rutter: 256
MAC Address Table Size	32.768 poster
Jumbo Frame-support	9220 byte
Nätverksprotokoll	OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, statisk IP-routing, IGMPv3, OSPFv3, statisk IPv4-routing, statisk IPv6-routing, ECMP, RIPng, MLD, CIDR
Protokoll för administration på distans	SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON
Krypteringsalgoritm	MD5, SSL, TLS
Verifieringsmetod	RADIUS, PAP, CHAP, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Funktioner	Flödeskontroll, full duplex, DHCP-stöd, BOOTP-stöd, ARP-stöd, VLAN-stöd, IGMP snooping, Syslog-stöd, Stöd för DiffServ, stöd för IPv6, SNTP-support, sFlow, stöd för STP (Spanning Tree Protocol), stöd för MSTP (Multiple Spanning Tree Protocol), stöd för ACL (Access Control List), Quality of Service (QoS), Jumbo Frames-support, DHCP-server, MLD-snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP-support, LACP (Link Aggregation Control Protocol), Management Information Base (MIB), MAC-adressutlåsning, dynamiskt ARP-skydd, DHCP-swkydd, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow-support, CPU-skydd, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, LLDP-MED, STP BPDU Guard
Standarder som följs	IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz, IEEE 802.3bt
Processor	1 x ARM Cortex-A9: 1.016 GHz
RAM	1 GB DDR3 SDRAM
Flash-minne	4 GB

Gränssnitt	40 x 1000Base-T RJ-45 4 x Gigabit LAN SFP 8 x 1/2.5/5/10GBase-T RJ-45 PoE Class 6 - 60 W 1 x seriell (konsol) 1 x USB Type B 1 x 1000Base-T hantering
Expansionskortplatser	1 (totalt)/ 1 (ledig) x Plats för stackmodul 1 (totalt)/ 1 (ledig) x expansionskortplats

Nätdel	Intern strömförsörjning (ej installerad)
Max antal som stöds	2
Nätspänning	AC 120/230 V (50/60 Hz)

Standarder som följs

CISPR 22 klass A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 klass A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Bredd	44.25 cm
Djup	32.43 cm
Höjd	4.39 cm
Vikt	4.49 kg

Service och support	Begränsad garanti - livstid

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	15 - 95 % (icke-kondenserande)
Min temperatur vid förvaring	-40 °C
Max temperatur vid förvaring	70 °C
Luftfuktighet vid lagring	90 % (icke kondenserande)
