Produktbeskrivning

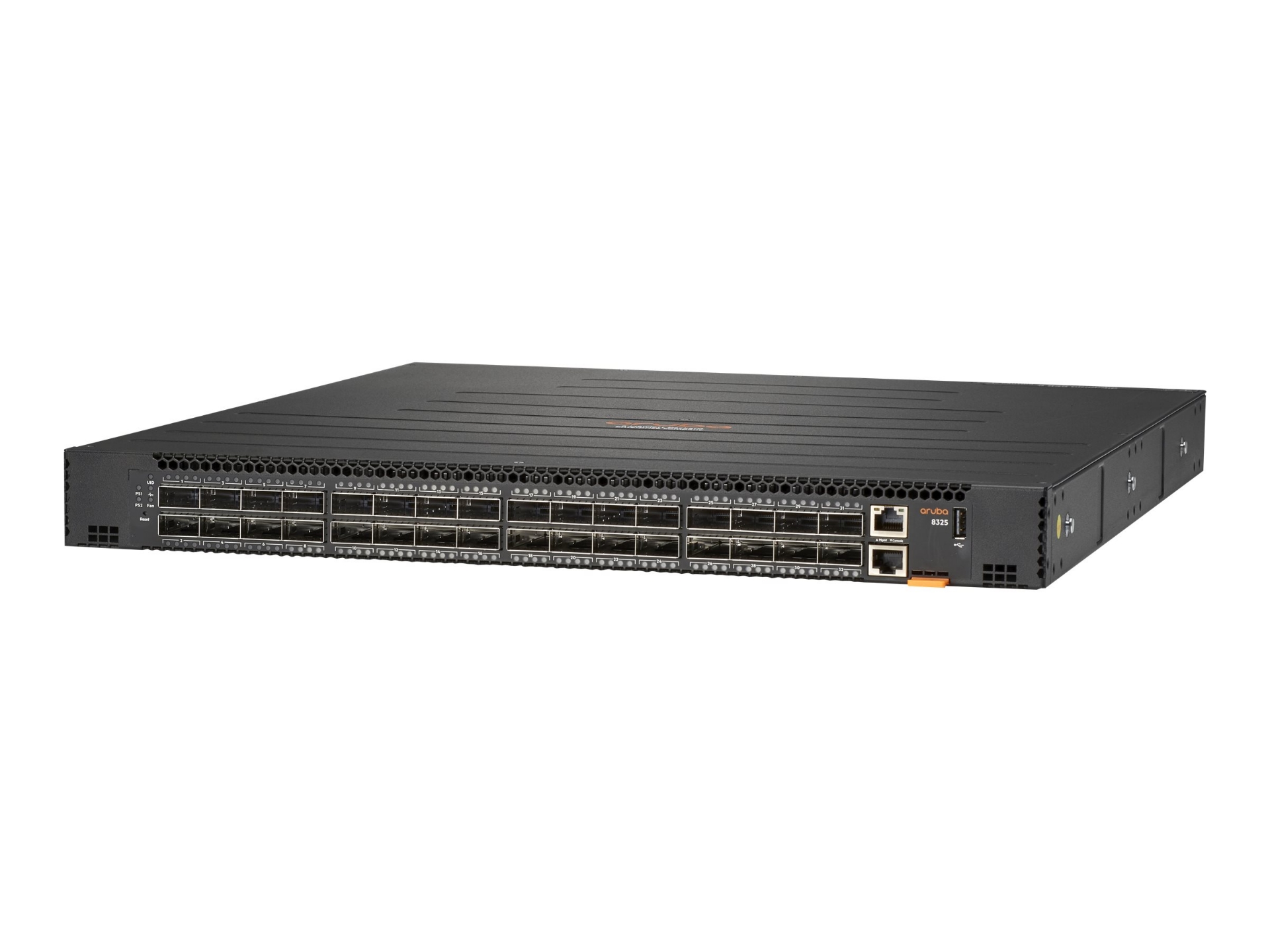

The Aruba 8325 switch serves as both a campus (core and aggregation) and data center (Top of Rack) switch. This game-changing solution offers an innovative approach to dealing with network demands in the mobile, cloud and IoT era. The Aruba 8325 is based on ArubaOS-CX, a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. The key innovations in ArubaOS-CX are its microservices style modular architecture, REST APIs, Python scripting capabilities and the Aruba Network Analytics Engine. The Aruba 8325 Switch Series provides line rate 1GbE, 10GbE, 25GbE, and 40GbE in a compact 1U form factor.



Egenskaper

Game-changing business agility
The Aruba 8325 Switch Series is a campus core and aggregation switch and data center Top of Rack solution with an innovative and powerful approach to dealing with the cross-domain demands of the mobile, cloud, and IoT era. Fully programmable with ArubaOS-CX, it brings automation and visibility and helps troubleshoot via simple scripting. Aruba Network Analytics Engine provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple python agents and REST APIs. Offers high-speed fully distributed architecture with 6.4Tbps of switching capacity. Provides robust security and QoS with advanced Layer 2 and Layer 3 features including support for BGP, OSPF, VRF and VXLAN.

Modern software system simplifies and automates
The Aruba 8325 Switch Series is based on the ArubaOS-CX, a modern software system that automates and simplifies many critical and complex network tasks. The built-in time series database enables customers and developers to develop software modules for historical troubleshooting, as well as analysis of historical trends, to predict and avoid future problems due to scale, security, and performance bottlenecks. It includes stability, independent monitoring and restart of individual software modules, and enhanced software process serviceability functions. It also allows individual software modules to be upgraded for higher availability.

High performance and high availability
The Aruba 8325 Switch Series includes a high-speed, fully distributed architecture and provides up to 6.4Tbps switching capacity to meet the demands and bandwidth-intensive applications today and in the future. Aruba's high-availability technology is Aruba VSX which has been designed from ground up to deliver continuous availability, virtualization and simplicity requirements. Redundant and hot-swappable power supplies and fans provide additional resiliency. The compact 1U switch delivers line rate 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE with very low latency. Optimize for your deployment with models that provide 48 ports of 1/10/25 GbE + 8 ports of 40/100GbE or 32 ports of 40/100GbE.



Teknisk specifikation

Typ av enhet	Switch - 32 portar - L3 - Administrerad
Modell	Främre till bakre luftflöde rackmonterbar 1U
Undertyp	100 Gigabit Ethernet
Portar	32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+
Prestanda	Växlingskapacitet: 6,4 Tbps Kapacitet: 1,905 Mpps
Kapacitet	Virtuella gränssnitt (VLANs) per port för 802.1q: 4096
Jumbo Frame-support	9KB
Nätverksprotokoll	OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, PIM-SM, statisk IP-routing, IGMPv3, GRE, OSPFv3, statisk IPv6-routing, ECMP, PBR (policy-based routing), MLD, MSTP, RSTP, STP
Protokoll för administration på distans	SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP, NTP
Krypteringsalgoritm	FIPS 140-2
Verifieringsmetod	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Funktioner	Routing, DHCP-stöd, VPN-stöd, ARP-stöd, VLAN-stöd, IGMP snooping, portspegling, övervakningsbar, stöd för IPv6, sFlow, stöd för STP (Spanning Tree Protocol), stöd för snabbt trädspanningsprotokoll (RSTP), stöd för MSTP (Multiple Spanning Tree Protocol), stöd för ACL (Access Control List), Quality of Service (QoS), Jumbo Frames-support, MLD-snooping, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4-support, LACP (Link Aggregation Control Protocol), fläktfack, redundanta snabbutbytbara fläktar, paketstormskydd, Strict Priority (SP), Loopback, stöd för VXLAN tunnelslutpunknter (VTEP), Protocol Independent Multicast (PIM)
Standarder som följs	IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX

Gränssnitt	32 x 100Gbit/40Gbit LAN

Nätdel	Intern strömförsörjning - hot-plug
Installerat antal	2
Max antal som stöds	2
Redundant ström	Ja
Schema för redundant ström	N+1
Effekt	650 Watt
Nätspänning	AC 120/230 V (50/60 Hz)

Inkluderade tillbehör	6 st. fläktar
Standarder som följs	RoHS, WEEE
TAA-kompatibel	Ja
Lokalisering	Engelska / Europa

Bredd	43.84 cm
Djup	51.51 cm
Höjd	4.32 cm
Vikt	9.5 kg

Service och support	Begränsad garanti - 5 år
